Forklift · Yale

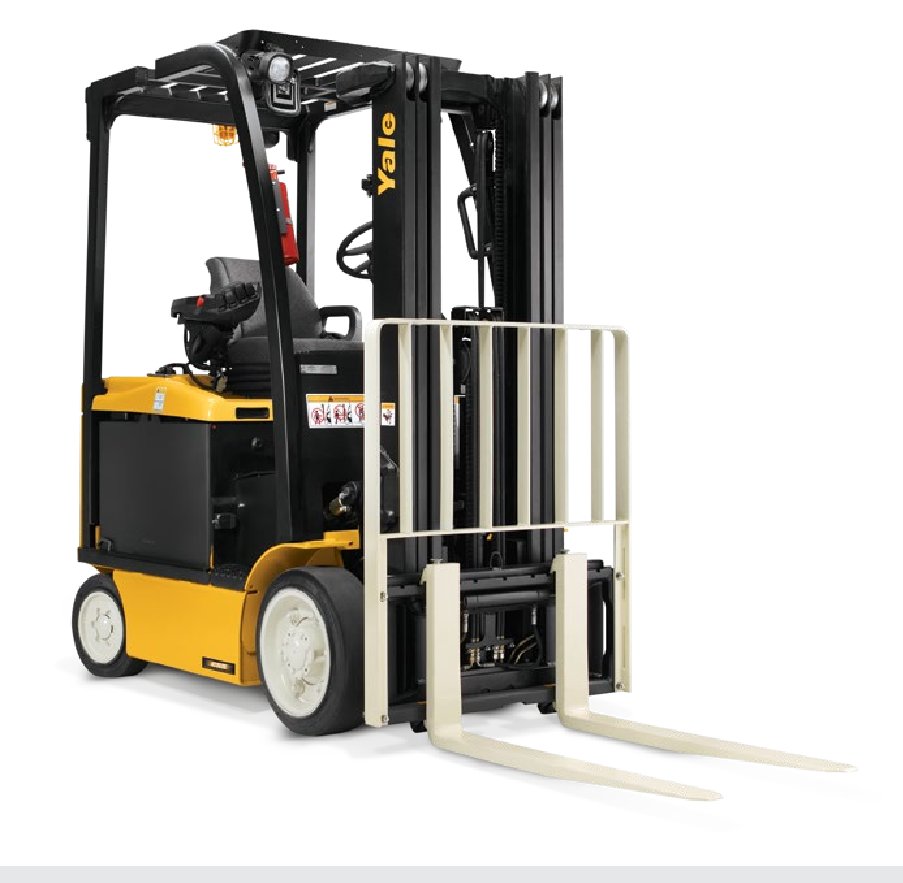

Yale ERC060VG Specs
Quick-reference specifications for the Yale ERC060VG forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height (2-stage mast)
- 118 in3.0 m
- Operating Weight with Battery
- 7,570 lb
Performance 15 specs
| Lift Speed | Std 2 Stg LFL Mast |
|---|---|
| Lower Speed | Std 2 Stg LFL Mast |
| Load Capacity | 6,000 lb (2,722 kg) |
| Load Center | 24 in (610 mm) |
| Maximum Lift Height (2-stage mast) | 118 in (3.0 m) |
| Maximum Lift Height (3-stage mast) | 175-223 in |
| Maximum Lift Height (4-stage mast) | 240-264 in |
| Travel Speed with Load | 19.8 km/h |
| Travel Speed without Load | 20.3 km/h |
| Hoisting Speed with Load | 0.6 m/s |
| Hoisting Speed without Load | 0.4 m/s |
| Lowering Speed with Load | 0.5 m/s |
| Turning Radius (outside) | 75.4 in (1,915 mm) |
| Right Angle Stack | 139.2 in (3,536 mm) |
| Tilt Range (standard) | 5° forward / 5° backward |
Dimensions 9 specs
| Length Overall | 7 ft 2 in (2,184 mm) |
|---|---|
| Width (standard tires) | 43.6 in (1,108 mm) |
| Width (wide tread) | 48.9 in (1,242 mm) |
| Height (overhead guard) | 7 ft 0 in (2,085 mm) |
| Overhead Guard Height (standard) | 88.5 in (2,248 mm) |
| Length to Fork Face | 86.5 in (2,199 mm) |
| Wheelbase | 54.2 in (1,377 mm) |
| Free-Lift | 5 in |
| ForkSize(TxWxL) | 2 x 4.9 x 42 in |
Weight 4 specs
| Total Weight (without battery) | 7,350 lb (3,334 kg) |
|---|---|
| Operating Weight with Battery | 7,570 lb |
| Front Tire Size | 21x8x15 |
| Rear Tire Size | 16x6x10.5 |
Power / Engine 3 specs
| Battery Voltage (standard) | 36/48 V |
|---|---|
| Battery Voltage (premium) | 48/80 V |
| Drive Motor | 24.7 hp (23.6 kW) |
Hydraulics / Fluids 1 spec
| Pump Motor | 15% Rating |
|---|
