Forklift · Yale

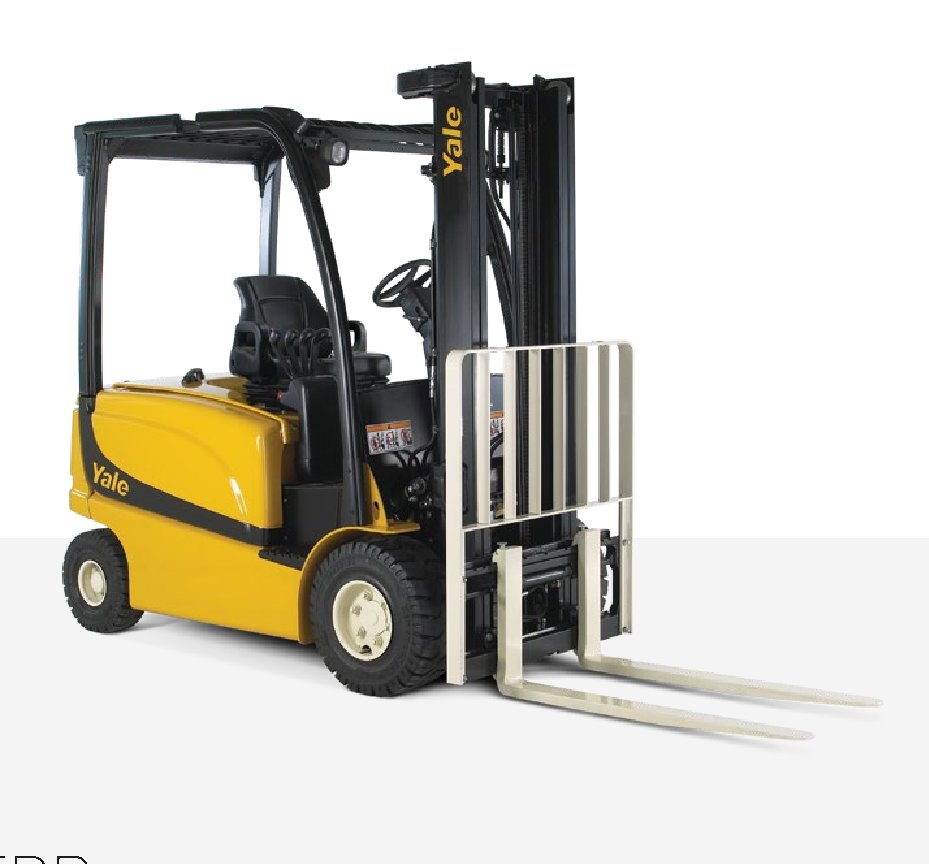

Yale ERP050VL Specs
Quick-reference specifications for the Yale ERP050VL forklift, from the manufacturer’s spec sheet and published specifications.
- Rated Capacity
- 5,000 lb2,268 kg
- Operating Weight
- 6,673 lb3,027 kg
Performance 13 specs
| Lift speed | Opt 2-stg FFL mast |
|---|---|
| Lower speed | Opt 2-stg FFL mast |
| Travel Speed (No Load) | 11.2 mph (18 kph) |
| Travel Speed (Rated Load) | 11.2 mph (18 kph) |
| Travel Speed – Premium (No Load) | 13 mph (21 kph) |
| Travel Speed – Premium (Rated Load) | 13 mph (21 kph) |
| Lift Speed – Std 2 Stg LFL (No Load) | 124 ft/min (0.63 m/sec) |
| Lift Speed – Std 2 Stg LFL (Rated Load) | 75 ft/min (0.38 m/sec) |
| Lift Speed – Premium 2 Stg LFL (No Load) | 142 ft/min (0.72 m/sec) |
| Lift Speed – Premium 2 Stg LFL (Rated Load) | 96 ft/min (0.49 m/sec) |
| Max Lift Height | 133 in (3,382 mm) |
| Rated Capacity | 5,000 lb (2,268 kg) |
| Load Center | 24 in (610 mm) |
Dimensions 5 specs
| Length | 7 ft 8 in (2,337 mm) |
|---|---|
| Width | 4 ft 4 in (1,321 mm) |
| Height | 7 ft 7 in (2,311 mm) |
| Wheelbase | 68.9 in (1,750 mm) |
| Outside Turning Radius | 81.6 in (2,073 mm) |
Weight 1 spec
| Operating Weight | 6,673 lb (3,027 kg) |
|---|
Power / Engine 1 spec
| Voltage | 80 Volts |
|---|
