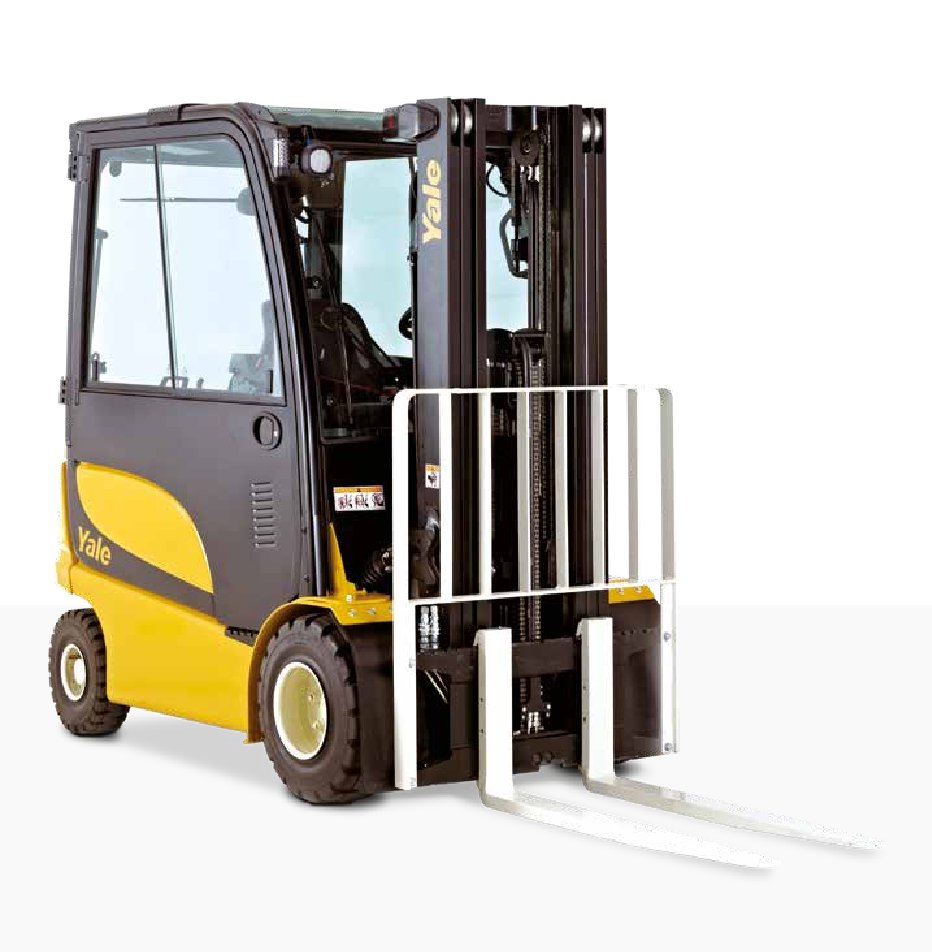

Yale ERP35VL Specs
Quick-reference specifications for the Yale ERP35VL forklift, from the manufacturer’s spec sheet and published specifications.
Performance 7 specs
| Load Capacity | 7,716 lb (3,500 kg) |
|---|---|
| Load Center | 500 mm |
| Lifting Height | 19.06 ft (5.81 m) |
| Turning Radius | 6.82 ft (2.08 m) |
| Travel Speed (loaded/unloaded) | 18/21 km/h |
| Hoisting Speed (loaded/unloaded) | 0.37/0.63 m/s |
| Lowering Speed (loaded) | 0.58 m/s |
Dimensions 4 specs
| Length | 11.71 ft (3,570 mm) |
|---|---|
| Width | 4.23 ft (1,289 mm) |
| Height (mast lowered) | 7.19 ft (2,192 mm) |
| Height (mast raised) | 7.19 ft (2,193 mm) |
Weight 2 specs
| Total Weight | 7,413 lb (3,364 kg) |
|---|---|
| Battery Weight | 4,313 lb (1.956 t) |
Power / Engine 4 specs
| Battery according to DIN | 43531/35/36 A, B, C, no |
|---|---|
| Voltage | 80 V |
| Traction Motor | 20 kW |
| Hoist Motor | 16 kW |
Hydraulics / Fluids 1 spec
| Hydraulic | 2 x 10.0 |
|---|
