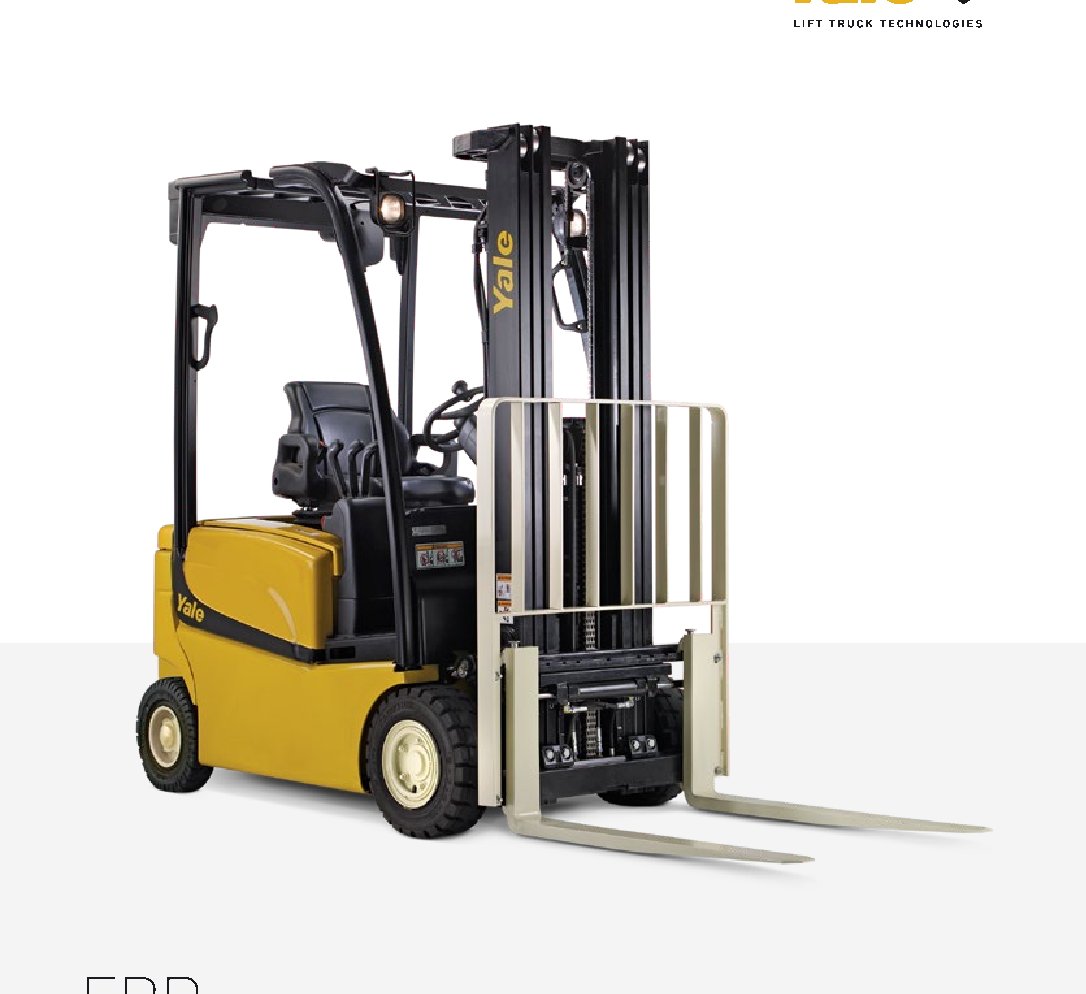

Yale ERP035VF Specs
Quick-reference specifications for the Yale ERP035VF forklift, taken from the manufacturer’s spec sheet.
- Rated capacity
- 3500 lb1588 kg
Performance 20 specs
| Rated capacity | 3500 lb (1588 kg) |
|---|---|
| Load center | 24 in (610 mm) |
| Mast tilt Std opt opt | 5F / 5B 10F / 5B 5F / 4B degrees |
| Outside turning radius | 65.2 in (1656 mm) |
| Voltage | 36 48 |
| Travel speed Extended shift OFF NL/RL | 9.8 / 9.8 mph (15.7 / 15.7 km/h) |
| Travel speed Extended shift ON NL/RL | 8.7 / 8.7 mph (14.0 / 14.0 km/h) |
| Lift speed Std 2-stg LFL mast NL/RL | 128 / 71 ft/min (0.65 / 0.36 m/sec) |
| Lift speed Opt 2-stg FFL mast NL/RL | 114 / 75 ft/min (0.58 / 0.38 m/sec) |
| Lift speed Opt 3-stg FFL mast NL/RL | 114 / 75 ft/min (0.58 / 0.38 m/sec) |
| Lift speed Opt 4-stg FFL mast NL/RL | 120 / 77 ft/min (0.61 / 0.39 m/sec) |
| Lower speed Std 2-stg LFL mast NL/RL | 93 / 100 ft/min (0.47 / 0.51 m/sec) |
| Lower speed Opt 2-stg FFL mast NL/RL | 77 / 91 ft/min (0.39 / 0.46 m/sec) |
| Lower speed Opt 3-stg FFL mast NL/RL | 81 / 91 ft/min (0.41 / 0.46 m/sec) |
| Lower speed Opt 4-stg FFL mast NL/RL | 94 / 98 ft/min (0.48 / 0.50 m/sec) |
| Gradability 5 Minute rating NL/RL | 36.2 / 24.3 35.0 / 25.0 % |
| Gradability 60 Minute rating NL/RL | 5.7 / 4.0 9.2 / 5.9 % |
| Brake Method of control Service/parking | Hydraulic / mechanical |
| Brake Method of operation Service/parking | Foot / automatic |
| Sound level Measured per ANSI B56.11.5 | 69 dB (A) |
Dimensions 17 specs
| Tire size Drive/steer | 18 x 7-8 / 140 / 55-9 |
|---|---|
| Tread Ctr. of tires Drive/steer | 35 / 35.4 in (889 / 898 mm) |
| Mast – lowered height Std mast | 78 in (1980 mm) |
| Mast – extended height Std mast with/without LBR | 168 / 142 in (4262 / 3606 mm) |
| Overhead guard height Std/flat plate/drive in rack | 81.5 / 77.9 / 81.5 in (2070 / 1979 / 2070 mm) |
| SIP to bottom std OHG Nominal Std/susp/swivel | 38.9 / 39.2 / 38.7 in (989 / 997 / 985 mm) |
| Tow pin height Vertical center of pin | 14.1 in (360 mm) |
| Overall width | 41.7 in (1060 mm) |
| Forks Thickness x width x length | 1.6 x 3.9 x 42 in (40 x 100 x 1067 mm) |
| Ground clearance Lowest point NL/RL | 2.8 / 2.8 in (70 / 70 mm) |
| Ground clearance Center of truck NL/RL | 3.7 / 3.5 in (95 / 90 mm) |
| Load distance Center of wheel to face of forks | 12.6 in (321 mm) |
| Length to face of forks Chassis length | 77.8 in (1975 mm) |
| Wheelbase | 56.3 in (1431 mm) |
| Right angle stack | 125.8 in (3196 mm) |
| Step height | 19.1 in (484 mm) |
| Floor height Lowest point | 21.9 in (557 mm) |
Power / Engine 5 specs
| Floor to top of battery rollers | 7 in (178 mm) |
|---|---|
| Battery compartment Height Std/battery rollers/tall | 23.9 / 25.4 / 26.7 in (607 / 645 / 677 mm) |
| Battery compartment Width | 39 in (990 mm) |
| Battery compartment Length | 25.3 in (642 mm) |
| Truck weight Without battery NL | 5270 lb (2390 kg) |
Hydraulics / Fluids 2 specs
| Attachment relief pressure Mech levers/mini levers | 2611 / 2248 psi (180 / 155 bar) |
|---|---|
| Auxiliary oil flow 3rd and 4th function | 5.3 / 10.6 gal/min (20 / 40 l/min) |
