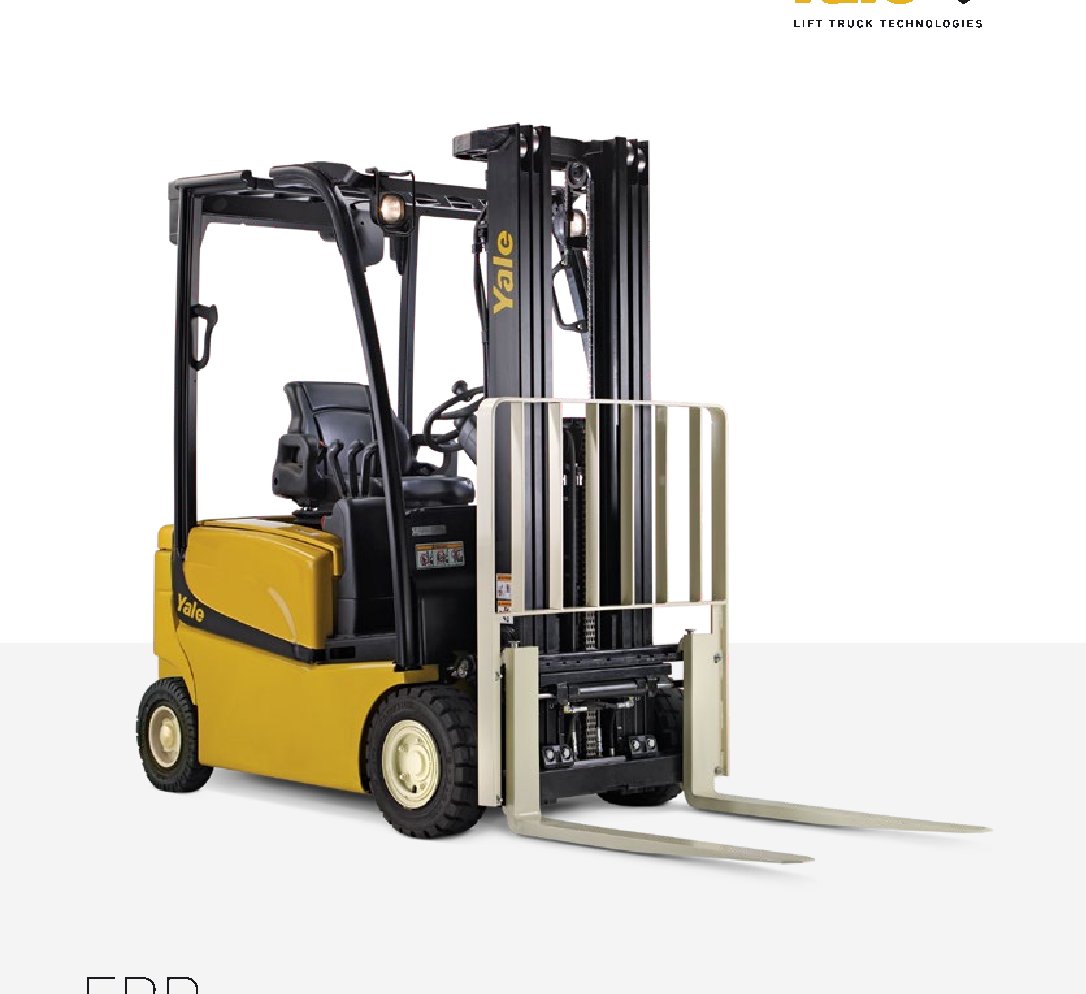

Yale ERP040VF Specs
Quick-reference specifications for the Yale ERP040VF forklift, from the manufacturer’s spec sheet and published specifications.
Performance 9 specs
| Auxiliary oil flow | 3rd and 4th function |
|---|---|
| Load Capacity | 4,000 lb (1,814 kg) |
| Load Center | 24 in (610 mm) |
| Lift Speed – No Load | 128 ft/min (0.65 m/s) |
| Lift Speed – With Load | 77 ft/min (0.39 m/s) |
| Travel Speed – With/Without Load | 9.3 mph (15.7 km/h) |
| Turning Radius (outside) | 65.1-65.2 in (1,660 mm) |
| Sound Level | 69 dB (A) |
| Mast Tilt | 5° forward / 5° back (standard) |
Dimensions 7 specs
| Overall Length | 6 ft 6 in |
|---|---|
| Overall Width | 41.7 in (1,060 mm) |
| Mast – Lowered Height | 78 in (1,980 mm) |
| Lift Height – Top of Fork (2-stage LFL) | 119 in (3,032 mm) |
| Mast – Extended Height (with/without LBR) | 168 / 142 in (4,262 / 3,606 mm) |
| Overhead Guard Height (Std/Flat Plate/Drive-in Rack) | 81.5 / 77.9 / 81.5 in (2,070 / 1,979 / 2,070 mm) |
| Fork Size (Thickness × Width × Length) | 1.6 × 3.9 × 42 in (40 × 100 × 1,067 mm) |
Weight 2 specs
| Service Weight | 5,310 lb (2,409 kg) |
|---|---|
| Battery Weight | 2,094 lb (0.95 t) |
Power / Engine 1 spec
| Battery Voltage | 36 V or 48 V |
|---|
Hydraulics / Fluids 2 specs
| Attachment Relief Pressure (Mech Levers/Mini Levers) | 2,611 / 2,248 psi (180 / 155 bar) |
|---|---|
| Auxiliary Oil Flow (3rd and 4th Function) | 5.3 / 10.6 gal/min (20 / 40 l/min) |
