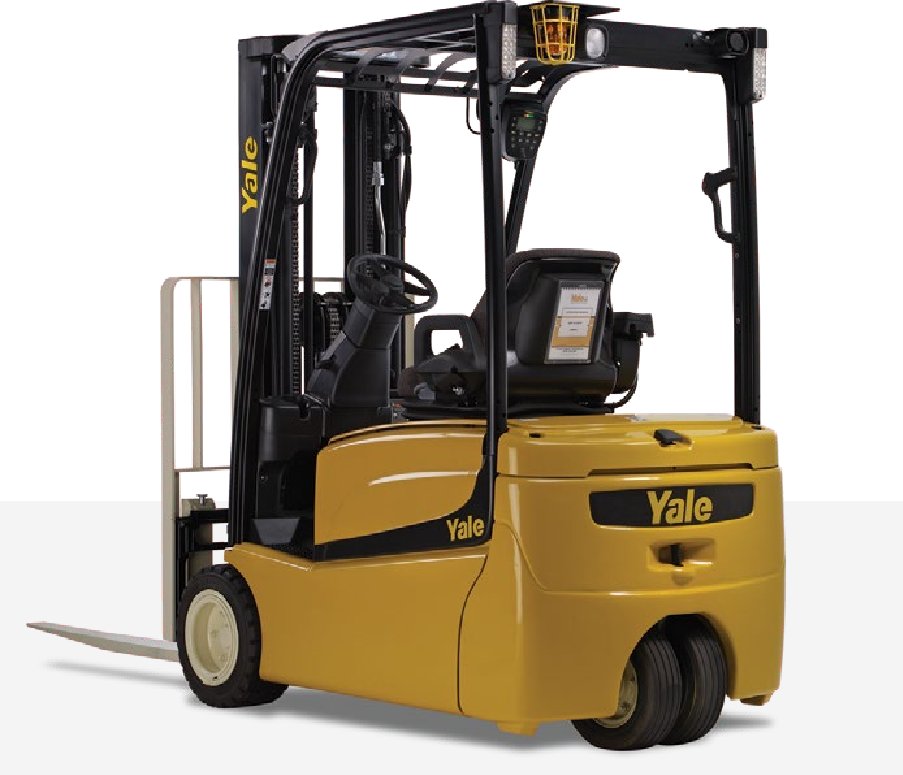

Yale ERP035VT Specs
Quick-reference specifications for the Yale ERP035VT forklift, taken from the manufacturer’s spec sheet.
- Rated capacity
- 3500 lb1588 kg
Performance 20 specs
| Rated capacity | 3500 lb (1588 kg) |
|---|---|
| Load center | 24 in (610 mm) |
| Tread Ctr. of tires Drive/steer | 35 / 7 in (889 / 179 mm) |
| Mast tilt Std opt opt | 5F / 5B 10F / 5B 5F / 4B degrees |
| SIP to bottom std OHG Nominal Std/susp/swivel | 38.9 / 39.2 / 38.7 in (989 / 997 / 985 mm) |
| Load distance Center of wheel to face of forks | 12.6 in (321 mm) |
| Outside turning radius | 62.1 in (1577 mm) |
| Voltage | 36 48 |
| Lift speed Std 2-stg LFL mast NL/RL | 128 / 71 ft/min (0.65 / 0.36 m/sec) |
| Lift speed Opt 2-stg FFL mast NL/RL | 114 / 75 ft/min (0.58 / 0.38 m/sec) |
| Lift speed Opt 3-stg FFL mast NL/RL | 114 / 75 ft/min (0.58 / 0.38 m/sec) |
| Lift speed Opt 4-stg FFL mast NL/RL | 120 / 77 ft/min (0.61 / 0.39 m/sec) |
| Lower speed Std 2-stg LFL mast NL/RL | 93 / 100 ft/min (0.47 / 0.51 m/sec) |
| Lower speed Opt 2-stg FFL mast NL/RL | 77 / 91 ft/min (0.39 / 0.46 m/sec) |
| Lower speed Opt 3-stg FFL mast NL/RL | 81 / 91 ft/min (0.41 / 0.46 m/sec) |
| Lower speed Opt 4-stg FFL mast NL/RL | 94 / 98 ft/min (0.48 / 0.50 m/sec) |
| Gradability 5 Minute rating NL/RL | 36.2 / 24.3 35.0 / 25.0 % |
| Gradability 60 Minute rating NL/RL | 5.7 / 4.0 9.2 / 5.9 % |
| Brake Method of control Service/parking | Hydraulic / mechanical |
| Brake Method of operation Service/parking | Foot / automatic |
Dimensions 12 specs
| Tire size Drive/steer | 18 x 7-8 / 15 x 4.5-8 in |
|---|---|
| Mast – lowered height Std mast | 78 in (1980 mm) |
| Mast – extended height Std mast with/without LBR | 168 / 142 in (4262 / 3606 mm) |
| Overhead guard height Std/flat plate/drive in rack | 81.5 / 77.9 / 81.5 in (2070 / 1979 / 2070 mm) |
| Tow pin height Vertical center of pin | 21.2 in (540 mm) |
| Overall width | 41.3 in (1050 mm) |
| Forks Thickness x width x length | 1.6 x 3.9 x 42 in (40 x 100 x 1067 mm) |
| Ground clearance Lowest point NL/RL | 2.8 / 2.8 in (70 / 70 mm) |
| Ground clearance Center of truck NL/RL | 3.7 / 3.5 in (95 / 90 mm) |
| Length to face of forks Chassis length | 74.9 in (1903 mm) |
| Wheelbase | 54.6 in (1386 mm) |
| Right angle stack | 122.7 in (3117 mm) |
Power / Engine 5 specs
| Floor to top of battery rollers | 7 in (178 mm) |
|---|---|
| Battery compartment Height Std/battery rollers/tall | 23.9 / 25.4 / 26.7 in (607 / 645 / 677 mm) |
| Battery compartment Width | 39 in (990 mm) |
| Battery compartment Length | 25.3 in (642 mm) |
| Truck weight Without battery NL | 5230 lb (2372 kg) |
