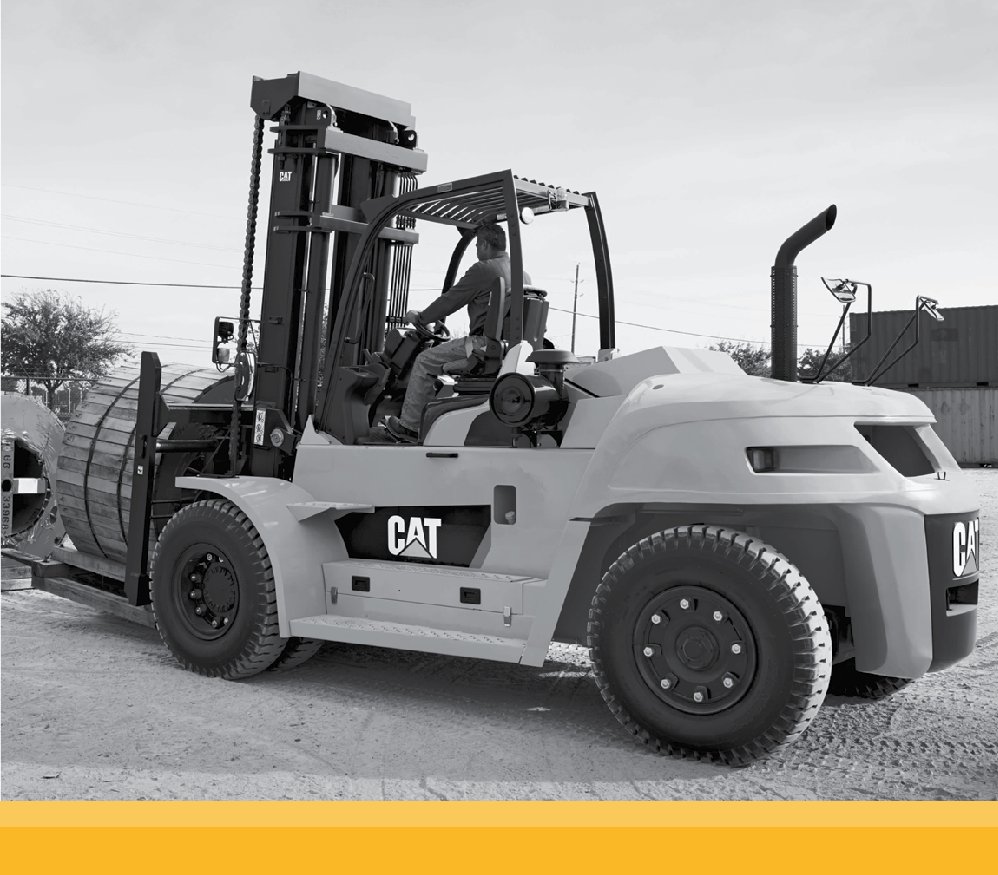

Caterpillar DP120NM Specs
Quick-reference specifications for the Caterpillar DP120NM forklift, taken from the manufacturer’s spec sheet.
- Gradeability, with/without load
- 42.3 / 19.7 %
Performance 15 specs
| Lifting capacity – At load centre Q | 12000 kg |
|---|---|
| Distance between centreline of tyres, front b | 1900 mm |
| Distance between centreline of tyres, rear b | 1965 mm |
| Mast tilt, forwards/backwards ∂/ß | 15 / 12 ° |
| Minimum distance between centres of rotation b | 1565 mm |
| Travel speed, with/without load | 22.5 / 29.5 km/h |
| Lifting speed, with/without load | 0.39 / 0.50 m/s |
| Lowering speed, with/without load | 0.46 / 0.50 m/s |
| Rated drawbar pull, with/without load | 106000 / 33000 N |
| Gradeability, with/without load | 42.3 / 19.7 % |
| Service brakes | Pneumatic |
| Rated /Nominal output to ISO 1585 | 100 kW |
| Rated speed to DIN 70 020 | 2200 rpm |
| Maximum operating pressure for attachments | 206 bar |
| Noise level, mean value at operator’s ear | 85 dB (A) |
Dimensions 17 specs
| Wheelbase y | 2800 mm |
|---|---|
| Tyre dimensions, front | 10.00 x 20 – 16 PR |
| Tyre dimensions, rear | 10.00 x 20 – 16 PR |
| Height with mast lowered h | 3087 mm |
| Free lift h | 72 mm |
| Lift height h | 3072 mm |
| Overall height with mast raised h | 4486 mm |
| Height to top of overhead guard h | 2915 mm |
| Seat height h | 1915 mm |
| Tow coupling height h | 695 mm |
| Overall length l | 5610 mm |
| Length to fork face (includes fork thickness) l | 4390 mm |
| Overall width b1/b | 2515 mm |
| Fork dimensions (thickness, width, length) s,e,l | 79 x 180 x 1220 mm |
| Fork carriage to DIN 15 173 A/B/no | No |
| Fork carriage width b | 2010 mm |
| Turning circle radius Wa | 4060 mm |
Power / Engine 1 spec
| Power source | Diesel |
|---|
