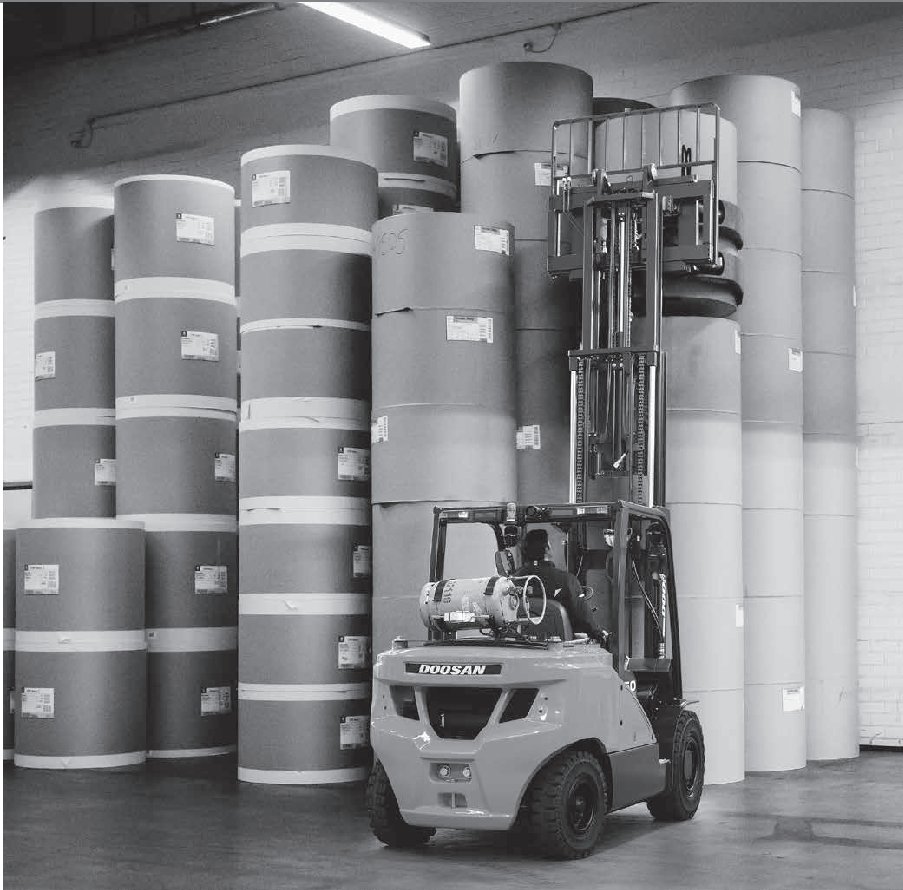

Doosan G35S-7 Specs

Quick-reference specifications for the Doosan G35S-7 forklift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Gradeability, Loaded/unloaded (@ 1.6km/h): 34.7/60.0%

Performance 15 specs

Drive	LPG
Load Capacity	3,500 kg
Load Center	600 mm
Tyres: pneumatic (P), cushion (C)	P
Tilt of Mast/Fork carriage Forward/Backward	8/10°
External Turning Radius	2,782 mm
Travel Speed, Loaded/unloaded	20/21 km/h
Lift Speed, Loaded/unloaded	0.50/0.54 m/s
Lowering Speed, Loaded/unloaded	0.48/0.45 m/s
Drawbar pull, Loaded (@ 1.6km/h)	29,890 N
Max. Drawbar pull, Loaded	34,740 N
Gradeability, Loaded/unloaded (@ 1.6km/h)	34.7/60.0%
Max. Gradeability, Loaded/unloaded	41.3/73.4%
Service Brake	Foot/Hyd
Rated Speed	2,500 min-1

Dimensions 18 specs

Load Distance: Center of Driveaxle to fork	560 mm
Wheelbase	2,015 mm
Tyre size, Front	8.25×15-14PR/7.50×16-12PR
Tyre size, Rear	7.00×12-12PR
Height, Mast lowered	2,225 mm
Free Lift	160 mm
Lift height	3,000 mm
Height, Mast Extended	4,265 mm
Height of Overhead Guard(Cabin)	2,225 mm
Height of Seat	1,248 mm
Overall Length	4,315 mm
Length to Forkface	3,115 mm
Overall Width	1,370 mm
Fork Dimensions	50x150x1,200 mm
Fork carriage ISO 2328, class/type A,B	III
Fork carriage width	1,250 mm
Aisle width for pallets 1,000 x 1,200 crossways	4,542 mm
Aisle width for pallets 800 x 1,200 crossways	4,742 mm

Weight 3 specs

Service weight	5,790 kg
Axle Loading, loaded, front/rear	8,215/1,075 kg
Axle Loading, unloaded, front/rear	2,685/3,105 kg

Power / Engine 4 specs

Engine Manufacturer/type	PSI (4.3 L)
Engine power according to DIN ISO1585	70 kW
Number of Cylinders/Displacement	4/4,294 cc (4/4,294 cm3)
Battery Voltage/normal capacity	12/75 V/Ah

Hydraulics / Fluids 2 specs

Operating pressure for attachments	140 bar
Oil volume for attachments	80 l/min
