Scissor Lift · Genie

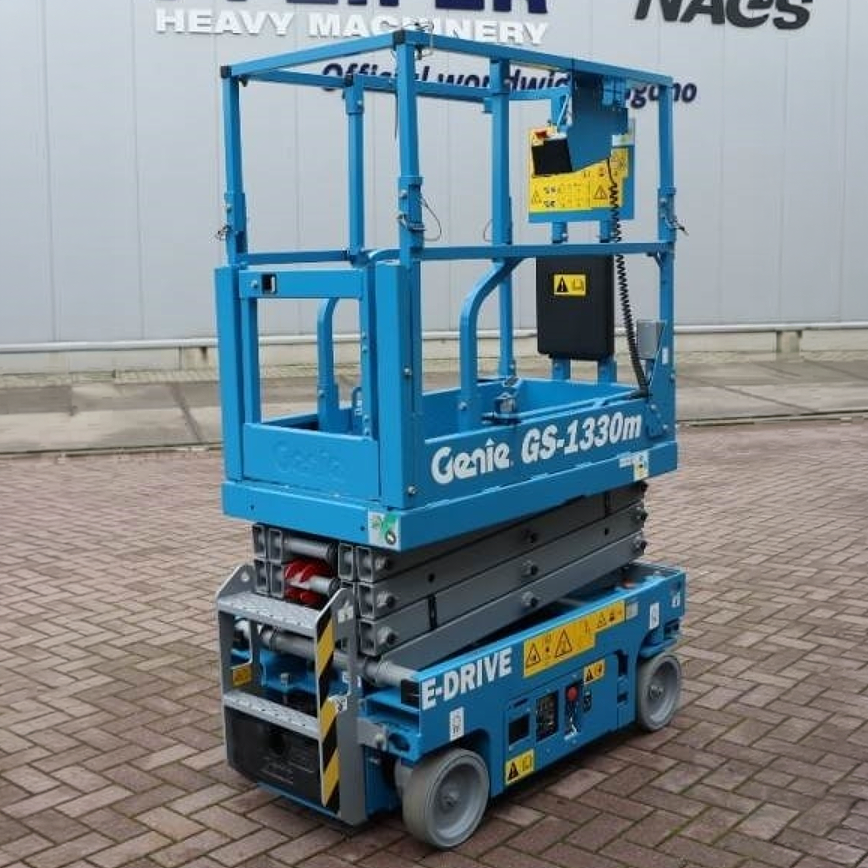

Genie GS-1330m Specs
Quick-reference specifications for the Genie GS-1330m scissor lift, taken from the manufacturer’s spec sheet.
- Maximum platform capacity with extension deck retracted
- 500 lb227 kg
- Platform height, maximum – indoor
- 12 ft 10 in3.9 m
- Working height maximum – indoor
- 18 ft 10 in5.9 m
- Gradeability – stowed
- 25%/14°
Performance 7 specs
| Working height maximum – indoor | 18 ft 10 in (5.9 m) |
|---|---|
| Maximum platform capacity with extension deck retracted | 500 lb (227 kg) |
| Maximum extension deck capacity with extension deck extended | 200 lb (91 kg) |
| Gradeability – stowed | 25%/14° |
| Turning radius – inside | 15.7 in (40 cm) |
| Raise / lower speed | 20 / 24 sec |
| Tilt sensor activation – front to back | 2.5° |
Dimensions 13 specs
| Platform height, maximum – indoor | 12 ft 10 in (3.9 m) |
|---|---|
| Platform height stowed | 2 ft 11 in (0.90 m) |
| Platform length – outside | 4 ft 2 in (1.26 m) |
| Roll-out platform extension deck | 1.5 ft (0.46 m) |
| Platform width – outside | 26.5 in (0.67 m) |
| Guardrail height | 3 ft 7 in (1.1 m) |
| Toeboard height | 6 in (15 cm) |
| Height-stowed: fixed rails | 6 ft 7.5 in (2.02 m) |
| Length-stowed | 4 ft 8 in (1.41 m) |
| Length-stowed extended | 6 ft 2 in (1.87 m) |
| Width | 30.5 in (0.78 m) |
| Wheelbase | 3 ft 3 in (0.98 m) |
| Ground clearance-center with pothole guards retracted | 2.4 in (6 cm) |
Weight 3 specs
| Tire load, maximum | 860 lb (390 kg) |
|---|---|
| Tire contact pressure | 119 psi (824 kPa) |
| Occupied floor pressure | 231 psf (11.08 kPa) |
Hydraulics / Fluids 1 spec
| Hydraulic system capacity | 1.05 gal (4.0 L) |
|---|
