Scissor Lift · Genie

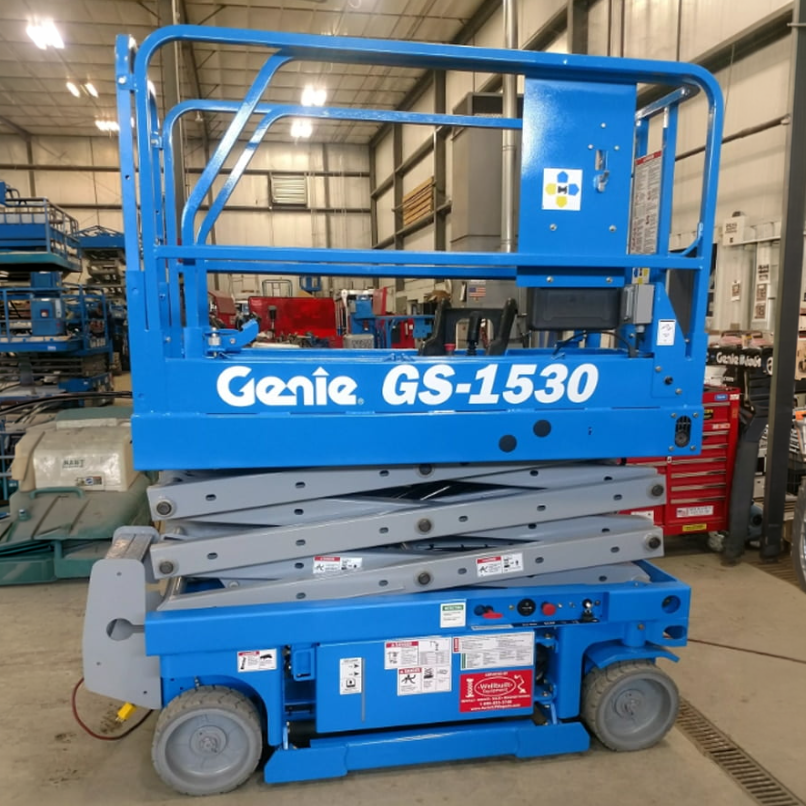

Genie GS-1530 Specs
Quick-reference specifications for the Genie GS-1530 scissor lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 600 lb272 kg
- Platform height maximum
- 15 ft4.57 m
- Working height maximum
- 21 ft6.57 m
- Gradeability – stowed
- 30%
Performance 8 specs
| Working height maximum | 21 ft (6.57 m) |
|---|---|
| Maximum platform occupancy | 2 |
| Lift capacity | 600 lb (272 kg) |
| Lift capacity – extension deck | 250 lb (113 kg) |
| Drive speed – stowed | 2.5 mph (4.0 km/h) |
| Drive speed – raised | 0.5 mph (0.8 km/h) |
| Gradeability – stowed | 30% |
| Raise / lower speed | 16 / 29 sec |
Dimensions 13 specs
| Platform height maximum | 15 ft (4.57 m) |
|---|---|
| Platform height stowed | 3 ft 2.2 in (.97 m) |
| Platform length – outside | 5 ft 4 in (1.63 m) |
| Slide-out platform extension deck | 3 ft (.91 m) |
| Platform width – outside | 2 ft 5 in (.74 m) |
| Guardrail height: fixed rails | 3 ft 3 in (.99 m) |
| Toeboard height | 6 in (.15 m) |
| Height-stowed: fixed rails | 6 ft 5 in (1.96 m) |
| Length-stowed | 6 ft (1.83 m) |
| Width | 2 ft 6 in (.76 m) |
| Wheelbase | 4 ft 4 in (1.32 m) |
| Ground clearance-center | 2.4 in (.06 m) |
| Length-stowed extended | 9 ft (2.74 m) |
Hydraulics / Fluids 1 spec
| Hydraulic system capacity | 3.75 gal (14.2 L) |
|---|
