Scissor Lift · Genie

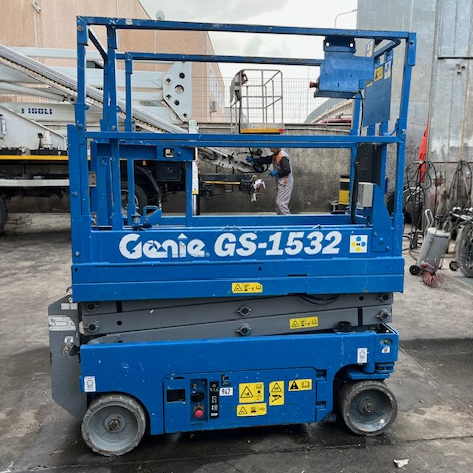

Genie GS-1532 Specs
Quick-reference specifications for the Genie GS-1532 scissor lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 600 lb272 kg
- Platform height maximum
- 15 ft4.57 m
- Working height maximum
- 21 ft6.57 m
- Gradeability
- 30%
Performance 7 specs
| Working height maximum | 21 ft (6.57 m) |
|---|---|
| Lift capacity | 600 lb (272 kg) |
| Drive speed – stowed | 2.5 mph (4.0 km/h) |
| Drive speed – raised | 0.5 mph (0.8 km/h) |
| Gradeability | 30% |
| Raise / lower speed | 16 / 29 sec |
| Tyres – solid non-marking | 12 x 4.5 x 8 (30 x 11 x 20 cm) |
Dimensions 12 specs
| Platform height maximum | 15 ft (4.57 m) |
|---|---|
| Platform length – outside | 5 ft 4 in (1.63 m) |
| Slide-out platform extension deck | 3 ft (91 cm) |
| Platform width – outside | 2 ft 5 in (74 cm) |
| Guardrail height | 3 ft 7 in (1.10 m) |
| Toeboard height | 6 in (15 cm) |
| Height – stowed:fixed rails | 6 ft 5 in (1.96 m) |
| Length – stowed | 6 ft (1.83 m) |
| Length – stowed extended | 9 ft (2.74 m) |
| Width | 2 ft 8 in (81.3 cm) |
| Wheelbase | 4 ft 4 in (1.32 m) |
| Ground clearance – centre | 2.4 in (6 cm) |
Hydraulics / Fluids 1 spec
| Hydraulic system capacity | 3.75 gal (14.2 L) |
|---|
