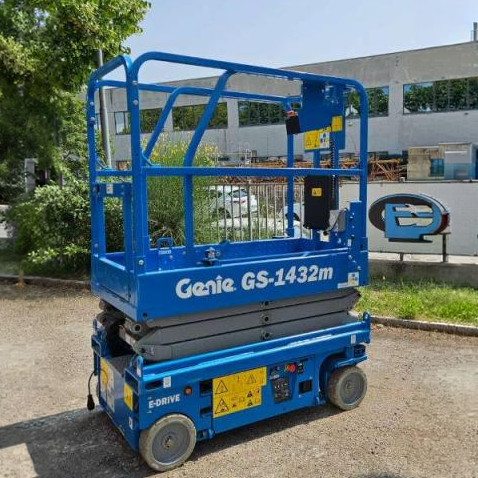

Genie GS-1432m Specs

Quick-reference specifications for the Genie GS-1432m scissor lift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Lift capacity: 227 kg
Working height max. – indoor: 6.30 m
Weight: 900 kg

Performance 10 specs

Working height max. – indoor	6.30 m
Working height max. – outdoor	5.66 m
Lift capacity	227 kg
Lift capacity – extension deck extended	113 kg
Drive speed – raised	0.8 km/h
Turning radius – inside/outside	0/1.37 m
Lifting speed – raise/lower	19/20 sec
Sound Pressure level (ground workstation)	< 70 dBA
Sound Pressure level (platform workstation)	< 70 dBA
Vibrations	< 2.5 m/s

Dimensions 16 specs

Platform length – outside	1.40 m
Platform length – outside, extended	2.00 m
Slide-out platform extension deck – length	0.60 m
Guardrail height	1.10 m
Toeboard height	15 cm
Height – stowed (fixed rails)	1.88 m
Height – stowed (folding rails)	1.88 m
Height – stowed (rails lowered)	1.49 m
Length machine – stowed	1.40 m
Length machine – stowed, extended	2.00 m
Width	0.81 m
Wheelbase	1.12 m
Ground clearance (center) – pothole guards retracted	7 cm
Ground clearance – pothole guards deployed	1.90 cm
Max. platform drive height	4.30 m
Tires – solid non-marking	25.4 × 7.62 cm

Weight 4 specs

Weight	900 kg
Tire load max.	425 kg
Tire contact pressure	988 kPa
Occupied floor pressure	9.73 kPa

Hydraulics / Fluids 1 spec

Hydraulic tank capacity (E-Drive)	5.7 L
