Scissor Lift · Genie

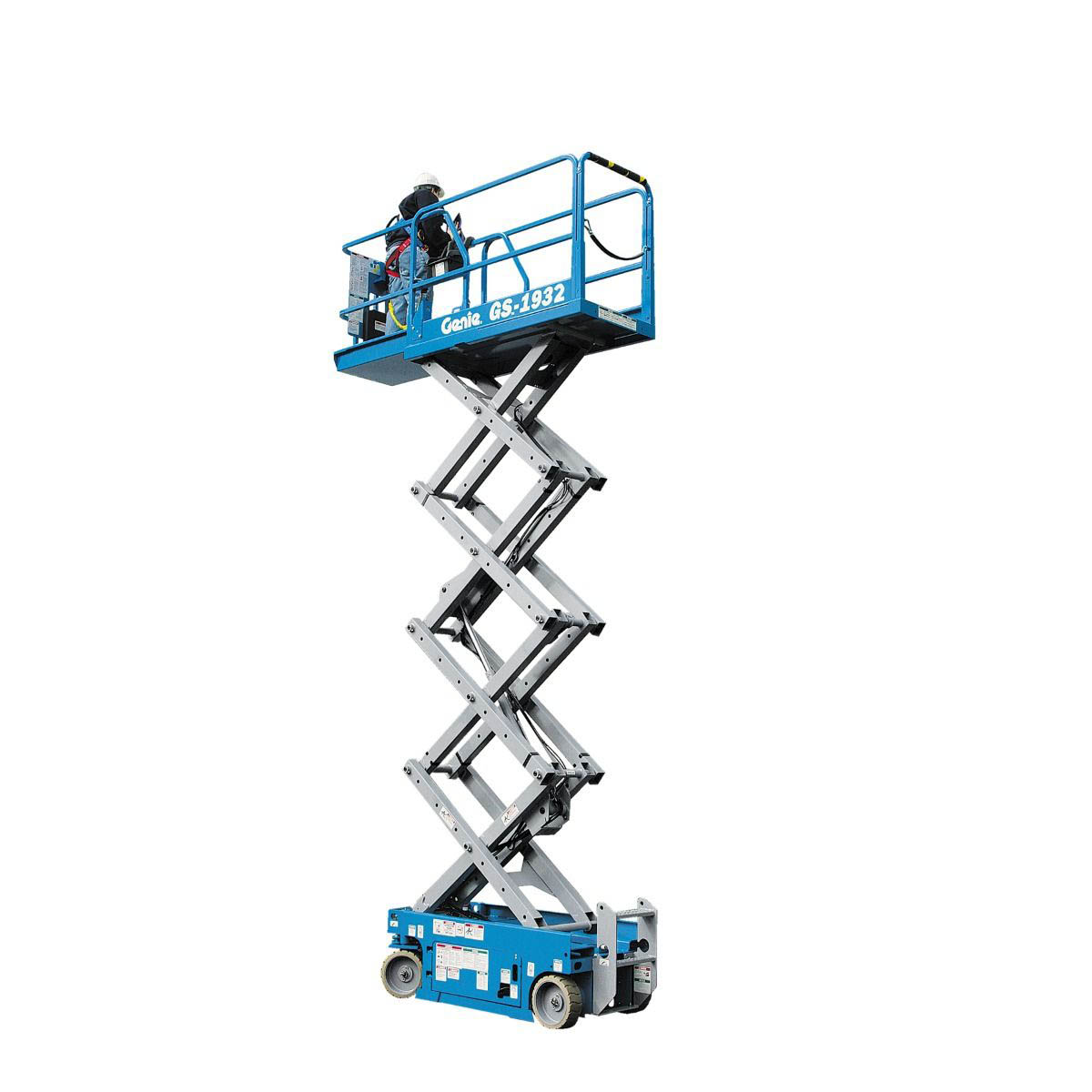

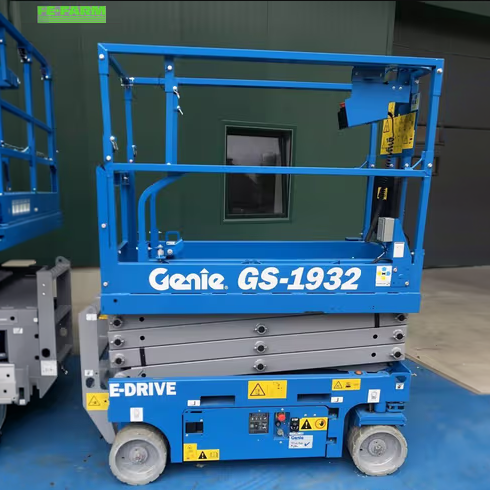

Genie GS-1932 Specs
Quick-reference specifications for the Genie GS-1932 scissor lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 500 lb227 kg
- Platform height max. – indoor
- 19 ft 3 in5.85 m
- Working height max. – indoor
- 25 ft 3 in7.85 m
- Weight
- 2,929 lb1,329 kg
Performance 13 specs
| Working height max. – indoor | 25 ft 3 in (7.85 m) |
|---|---|
| Working height max. – outdoor | 20 ft 8 in (6.47 m) |
| Lift capacity | 500 lb (227 kg) |
| Lift capacity – extension deck extended | 250 lb (113 kg) |
| Drive speed – stowed | 2.5 mph (4.0 km/h) |
| Drive speed – raised | 0.5 mph (0.8 km/h) |
| Gradeability – stowed | 25 % |
| Turning radius – inside/outside | 0 / 5 ft 1 in (0 / 1.55 m) |
| Lifting speed – raise/lower | 26 / 22 sec |
| Tires – solid non-marking | 12 × 4.5 in (30.5 × 11.5 cm) |
| Sound Pressure level (ground workstation) | < 70 dBA |
| Sound Pressure level (platform workstation) | < 70 dBA |
| Vibrations | < 8 ft 2 in/s² (< 2.5 m/s²) |
Dimensions 18 specs
| Platform height max. – indoor | 19 ft 3 in (5.85 m) |
|---|---|
| Platform height max. – outdoor | 14 ft 8 in (4.47 m) |
| Platform height – stowed | 3 ft 5 in (1.04 m) |
| Platform length – outside | 5 ft 5 in (1.66 m) |
| Platform length – outside, extended | 8 ft 5 in (2.55 m) |
| Slide-out platform extension deck – length | 3 ft (0.91 m) |
| Platform width – outside | 29.9 in (0.76 m) |
| Guardrail height | 3 ft 7 in (1.10 m) |
| Toeboard height | 6 in (15 cm) |
| Height – stowed (folding rails) | 7 ft 1 in (2.16 m) |
| Height – stowed (rails lowered) | 5 ft 11 in (1.80 m) |
| Length machine – stowed | 6 ft (1.83 m) |
| Length machine – stowed, extended | 8 ft 11 in (2.72 m) |
| Width | 2 ft 8 in (0.81 m) |
| Wheelbase | 4 ft 4 in (1.32 m) |
| Ground clearance (center) – pothole guards retracted | 3.2 in (8 cm) |
| Ground clearance – pothole guards deployed | 0.9 in (2.30 cm) |
| Max. platform drive height | 19 ft 3 in (5.85 m) |
Weight 4 specs
| Weight | 2,929 lb (1,329 kg) |
|---|---|
| Tire load max. | 1,435 lb (651 kg) |
| Tire contact pressure | 159 psi (1,099 kPa) |
| Occupied floor pressure | 244 psf (11.69 kPa) |
Power / Engine 2 specs
| Power – FLA | 24 V DC |
|---|---|
| Power – Lithium-Ion | 24 V DC |
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity (E-Drive) | 1 gal (3.8 L) |
|---|---|
| Hydraulic tank capacity (hydraulic drive) | 3.8 gal (14.2 L) |
