- Genie TMZ-34/19
Boom Lift · Genie

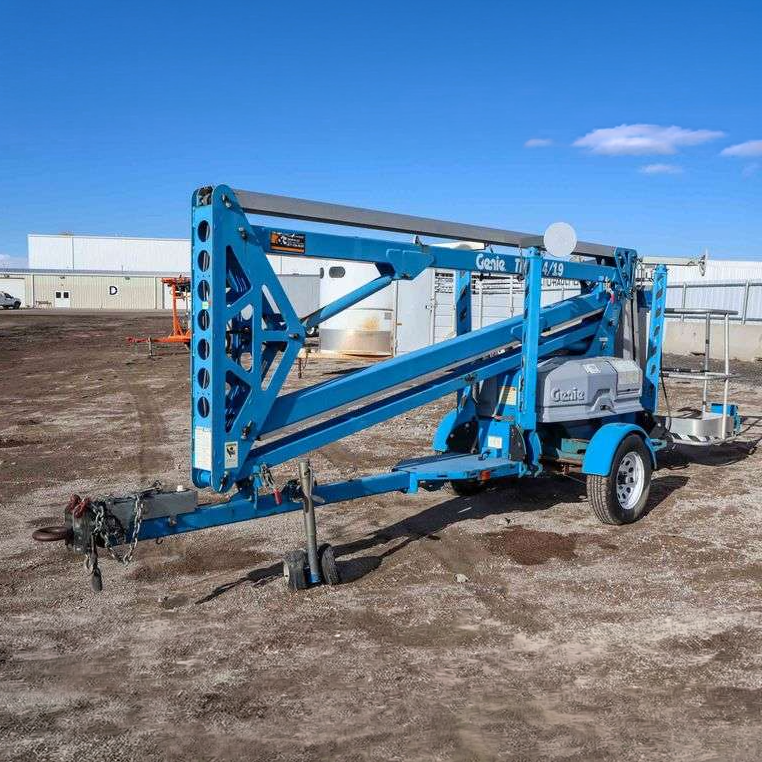

Genie TMZ-34/19 Specs
Quick-reference specifications for the Genie TMZ-34/19 boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity – ANSI, CE
- 500 lb227 kg
- Platform height
- 34 ft10.36 m
- Working height
- 40 ft12.36 m
Performance 6 specs
| Working height | 40 ft (12.36 m) |
|---|---|
| Horizontal reach – from pivot | 19 ft (5.8 m) |
| Leveling capability – manual outriggers 12˚ | 12° |
| Lift capacity – ANSI, CE | 500 lb (227 kg) |
| Turntable rotation | 359° non-continuous |
| Towing speed rating | 60 mph (97 km/h) |
Dimensions 15 specs
| Platform height | 34 ft (10.36 m) |
|---|---|
| Height – stowed | 77 1 ⁄ in (1.97 m) |
| Length – stowed | 19 ft 9 in (6 m) |
| Width | 59.5 in (1.51 m) |
| Ground clearance | 9 1 ⁄ 2 in (24 cm) |
| Platform length | 32 in (81 cm) |
| Platform width | 48 in (1.22 m) |
| Platform railing height | 44 in (1.12 m) |
| Toeboard height | 7 in (18 cm) |
| Toeboard height – entry | 4 in (10 cm) |
| Entry height | 18 in (46 cm) |
| Outrigger footprint – length | 11 ft (3.35 m) |
| Outrigger footprint – width | 10 ft (3.04 m) |
| Tire size – Domestic | 195/75 D14 |
| Tire size – European | 195/65 R15 |
Weight 1 spec
| Tongue weight – European | 220 lb (100 kg) |
|---|
Power / Engine 1 spec
| Power source | 24 V DC |
|---|
Hydraulics / Fluids 1 spec
| Leveling capabilit- hydraulic outriggers 10˚ | 10° |
|---|
