6K Telehandler · Gradall

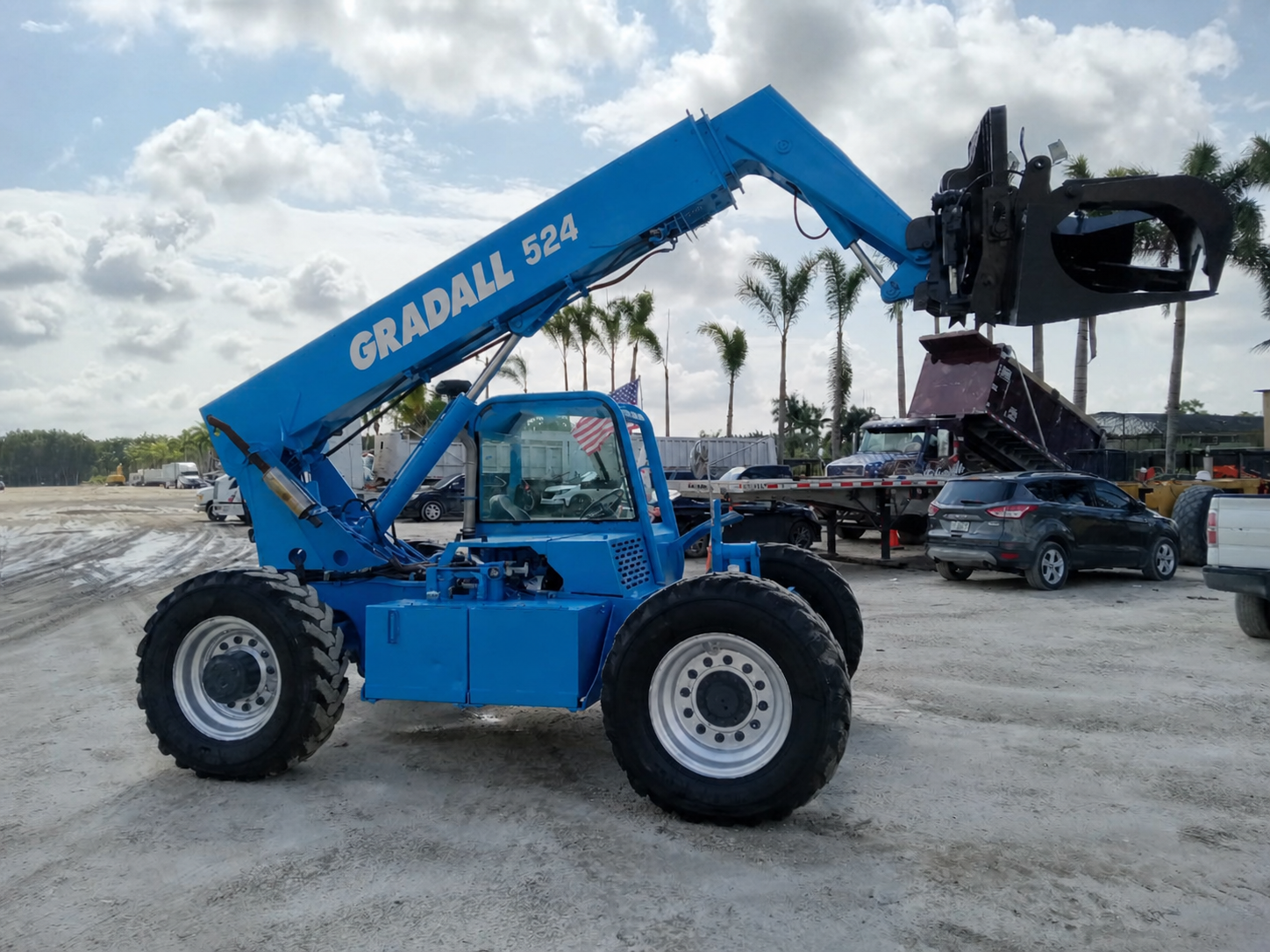

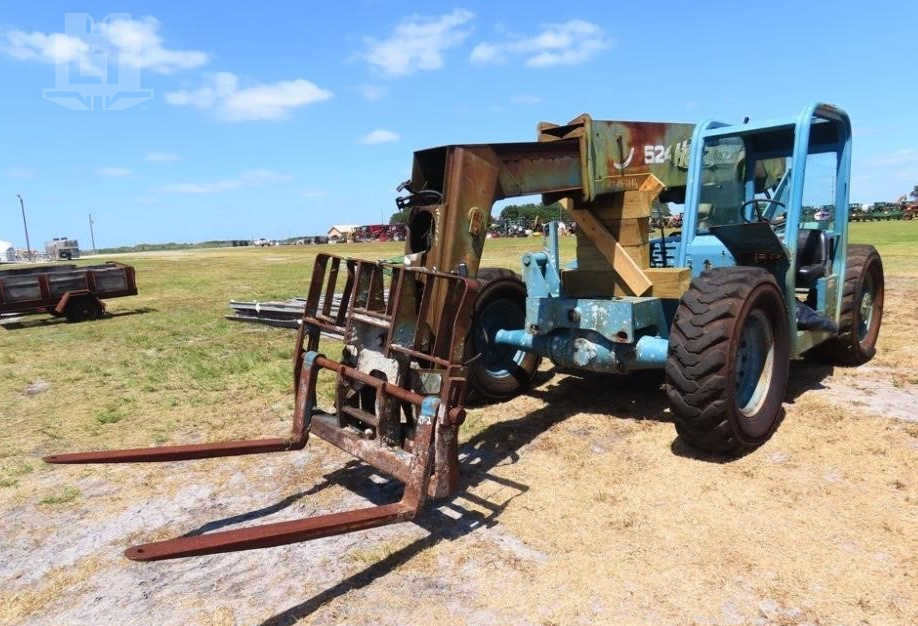

Gradall 524 Specs

Quick-reference specifications for the Gradall 524 telehandler, compiled from published specifications.

Lift Capacity: 6,000 lb2,722 kg
Maximum Lift Height: 24.5 ft7.5 m
Operating Weight: 15,100 lb6,849 kg

Performance 4 specs

Lift Capacity	6,000 lb (2,722 kg)
Maximum Lift Height	24.5 ft (7.5 m)
Maximum Reach	13 ft (4 m)
Horsepower	76 hp

Dimensions 3 specs

Length	14 ft 8 in (4.47 m)
Width	8 ft 0 in (2.44 m)
Height	7 ft 7 in (2.31 m)

Weight 1 spec

Operating Weight	15,100 lb (6,849 kg)

Power / Engine 1 spec

Engine	Cummins 4B3.9
