6K Telehandler · Gradall

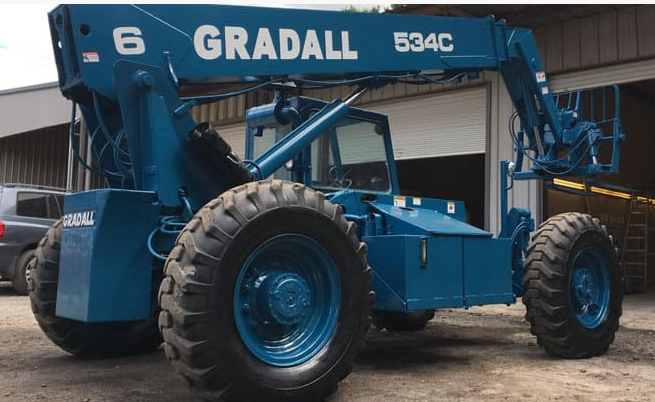

Gradall 534C-6 Specs
Quick-reference specifications for the Gradall 534C-6 telehandler, taken from the manufacturer’s spec sheet.
- Rated Capacity at 24″
- 6,000 lb2,722 kg
Performance 6 specs
| Rated Capacity at 24″ | 6,000 lb (2,722 kg) |
|---|---|
| Lift Speed (Boom Retracted) – Empty | 99.5 f.p.m. (30.3 m/min) |
| Lift Speed (Boom Retracted) – Loaded | 92 f.p.m. (28 m/min) |
| Boom Speed – Extend | 112 f.p.m. (34.1 m/min) |
| Boom Speed – Retract | 103.75 f.p.m. (31.6 m/min) |
| Rated Speed | 2500 rpm |
Power / Engine 4 specs
| Make and Model | Cummins 4B3.9 |
|---|---|
| Fuel | No. 2 Diesel |
| No. of Cylinders | 4 |
| Displacement | 239 cu. in (3.9 L) |
Hydraulics / Fluids 1 spec
| Fuel Tank | 40 gal (151.4 L) |
|---|
