6K Telehandler · Gradall

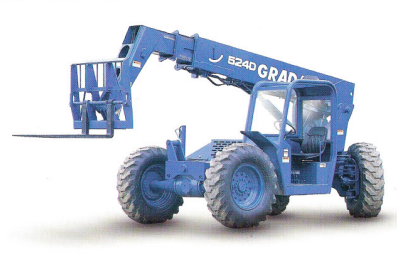

Gradall 524D Specs
Quick-reference specifications for the Gradall 524D telehandler, taken from the manufacturer’s spec sheet.
- Rated Capacity – At 24 in. load center
- 6,000 lb2,722 kg
Performance 6 specs
| Rated Capacity – At 24 in. load center | 6,000 lb (2,722 kg) |
|---|---|
| Frame Leveling | 8 degrees |
| Lift Speed (boom retracted) – Empty | 121 fpm (36.9 m/min) |
| Boom Speed – Retract | 131.3 fpm (40 m/min) |
| Drawbar Pull – Loaded | 12,850 lb (5828 kg) |
| Tires | 13:00×24 – G2 type |
Power / Engine 8 specs
| Engine – Make and Model | Cummins B3.9C-80 |
|---|---|
| Engine – Fuel | No.2 Diesel |
| Engine – Cycles | 4 |
| Engine – No. of Cylinders | 4 |
| Engine – Displacement | 239 cu. in (3.9 L) |
| Engine – Rated Speed | 2500 rpm |
| Electrical System – Voltage | 12 V |
| Electrical System – Alternator | 63 amp |
Hydraulics / Fluids 2 specs
| Fuel Tank | 40 gal (151.4 L) |
|---|---|
| Hydraulic System-Implement – System capacity | 40 gal (151.4 L) |
