6K Telehandler · Gradall

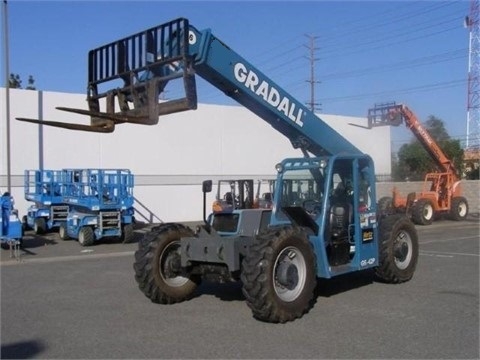

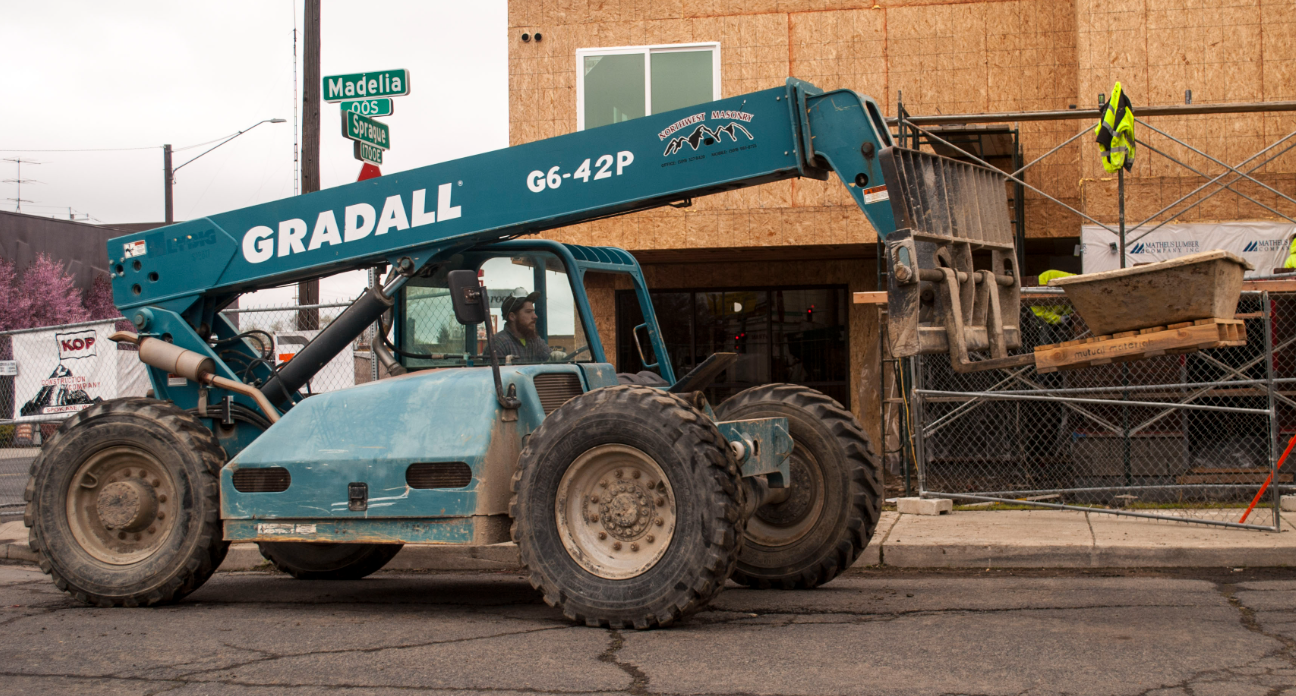

Gradall G6-42P Specs
Quick-reference specifications for the Gradall G6-42P telehandler, taken from the manufacturer’s spec sheet.
- Rated Capacity (At 24 in. load center)
- 6,600 lb3,000 kg
- Maximum Lift Height
- 42 ft12.8 m
- Operating Weight (With 48 in. Carriage and Forks)
- 20,400 lb9,253 kg
Performance 11 specs
| Rated Capacity (At 24 in. load center) | 6,600 lb (3,000 kg) |
|---|---|
| Frame Leveling | 8 degrees |
| Lift Speed (boom retracted) – Down | 8.9 sec |
| Boom Speed – Extend | 13.4 sec |
| Boom Speed – Retract | 16.5 sec |
| Travel Speeds Forward – 2WD | 16 mph (25.7 kmph) |
| Travel Speeds Forward – 4WD | 6 mph (9.7 kmph) |
| Drawbar Pull (loaded) | 16,300 lb (7,390 kg) |
| Rated Speed | 2,500 rpm |
| Outside Turning Radius | 171 in (4.34 m) |
| Max. Reach from Front Tires to 24 in. Load Center | 29 ft (8.84 m) |
Dimensions 5 specs
| Maximum Lift Height | 42 ft (12.8 m) |
|---|---|
| Length (less forks) | 218 in (5.53 m) |
| Width | 96 in (2.43 m) |
| Height | 94 in (2.38 m) |
| Wheelbase | 130 in (3.30 m) |
Weight 1 spec
| Operating Weight (With 48 in. Carriage and Forks) | 20,400 lb (9,253 kg) |
|---|
Power / Engine 4 specs
| Make and Model | John Deere 4045DF150 Turbocharged |
|---|---|
| Fuel | Diesel |
| No. of Cylinders | 4 |
| Displacement | 276 cu in (4.5 L) |
Hydraulics / Fluids 2 specs
| Fuel Tank | 46 gal (174 L) |
|---|---|
| Hydrostatic Drive | 6,300 PSI (43,437 kPa) |
