6K Telehandler · Gradall

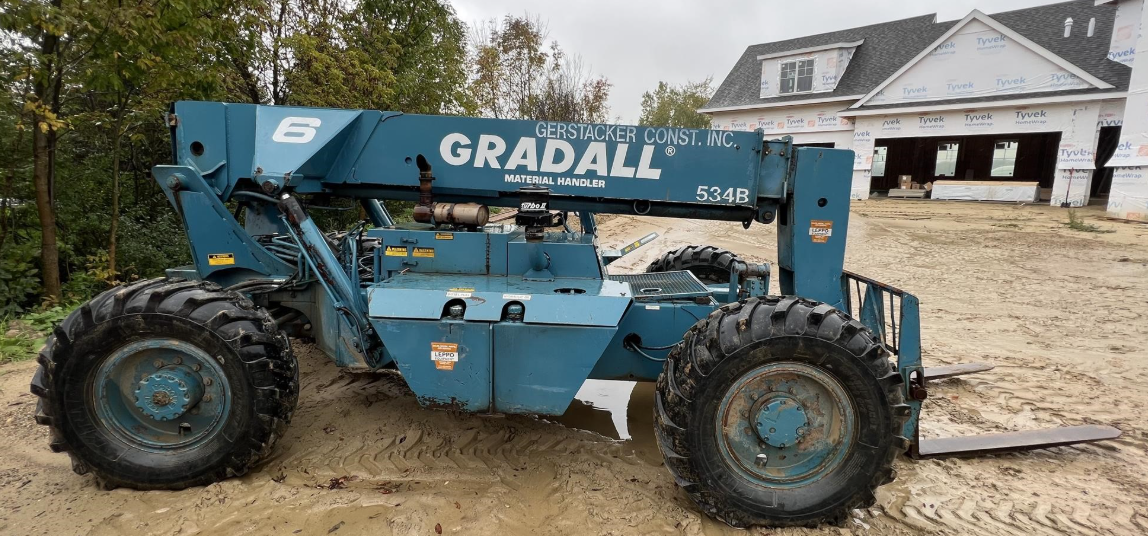

Gradall 534B-6 Specs
Quick-reference specifications for the Gradall 534B-6 telehandler, compiled from published specifications.
- Lift Capacity
- 6,000 lb2,722 kg
Performance 5 specs
| Lift Capacity | 6,000 lb (2,722 kg) |
|---|---|
| Maximum Reach | 36 ft (10.97 m) |
| Drive Configuration | 4WD |
| Transmission | Powershift 3-speed forward, 3-speed backward |
| Steering | Rear wheel 90-degree pivot steering |
Power / Engine 3 specs
| Engine Model | T4.236 |
|---|---|
| Horsepower | 103 HP |
| Fuel Tank Capacity | 40 gal (151.4 L) |
Hydraulics / Fluids 6 specs
| Hydraulic Oil Grade | ASTM 215 |
|---|---|
| Hydraulic Oil Viscosity | 215 SUS @ 100°F |
| Tire Specification – Standard | 13.00 x 24 – 8 ply, 55 psi |
| Tire Specification – Optional Front | 15.50 x 25 – 8 ply, 55 psi |
| Tire Pressure – Rear | 55 psi |
| Tire Pressure – Front | 65 psi |
