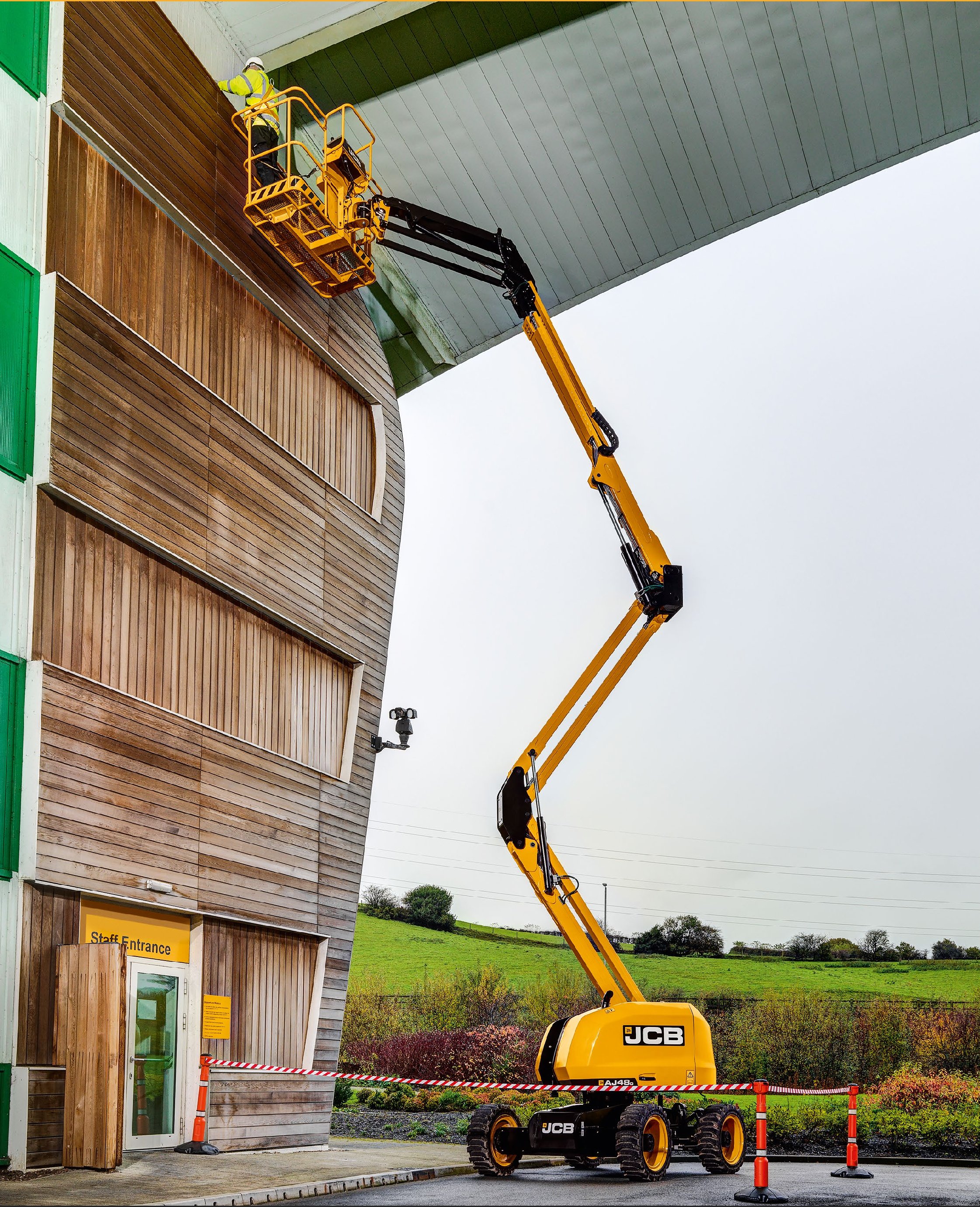

JCB AJ48D Specs
Quick-reference specifications for the JCB AJ48D telehandler, from the manufacturer’s spec sheet and published specifications.
- Platform Capacity
- 551 lb250 kg
- Platform Height
- 48 ft 3 in14.7 m
- Maximum Working Height
- 54 ft 3 in16.6 m
- Operating Weight
- 17,383 lb7,885 kg
Performance 8 specs
| Platform Height | 48 ft 3 in (14.7 m) |
|---|---|
| Maximum Working Height | 54 ft 3 in (16.6 m) |
| Maximum Outreach | 27 ft 4 in (8.3 m) |
| Travel Speed (stowed) | 4 mph |
| Travel Speed (raised) | 0.68 mph |
| Turning Radius (inside) | 8 ft 10 in (2.7 m) |
| Turning Radius (outside) | 15 ft 5 in (4.7 m) |
| Rotation | 160° |
Dimensions 6 specs
| Stowed Length | 24 ft 1 in (7.35 m) |
|---|---|
| Up and Over Clearance | 24 ft 4 in (7.5 m) |
| Width | 7 ft 5 in (2.26 m) |
| Platform Length | 2 ft 9 in (1.83 m) |
| Platform Width | 6 ft (0.85 m) |
| Wheelbase | 6 ft 8 in |
Weight 1 spec
| Operating Weight | 17,383 lb (7,885 kg) |
|---|
Power / Engine 5 specs
| Engine Type | KDI1903TCR |
|---|---|
| Engine Power | 47 hp (35 kW) |
| Emission Level | Tier 4F |
| Fuel Tank Capacity | 15.6 gallons |
| System Voltage | 12 V |
Hydraulics / Fluids 2 specs
| Platform Capacity | 551 lb (250 kg) |
|---|---|
| Max Occupants | 2 persons |
