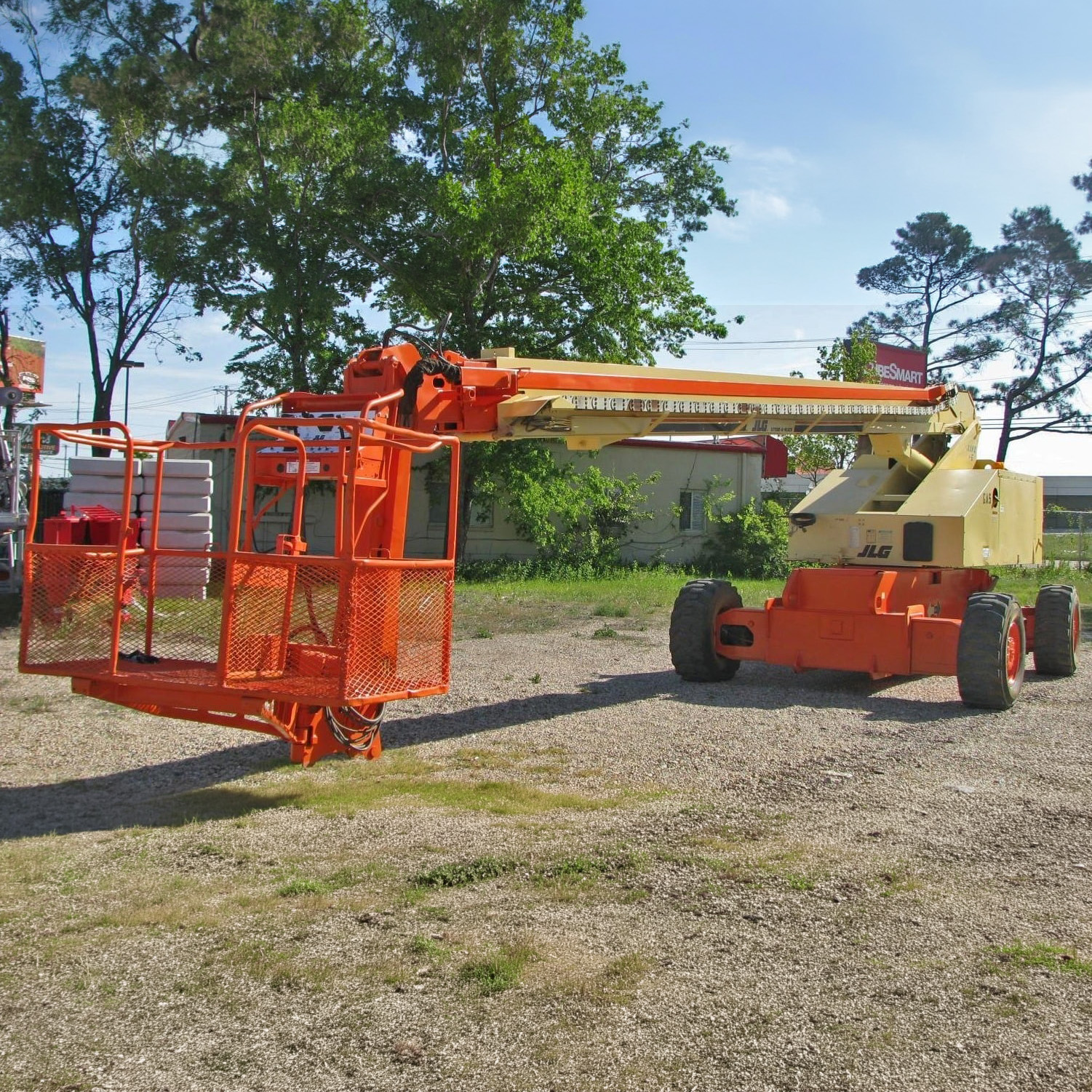

JLG 80HX+6 Specs
Quick-reference specifications for the JLG 80HX+6 boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb230 kg
- Platform Height
- 86 ft26.21 m
- Gradeability 2WD/4WD
- 25%/35%
Performance 11 specs
| Horizontal Outreach | 76 ft 11 in (23.44 m) |
|---|---|
| Below Ground Reach | 21 ft 8 in (6.6 m) |
| Swing | 360° Continuous |
| Platform Capacity | 500 lb (230 kg) |
| Platform Rotator | 180° Hydraulic |
| Jib (Range of Articulation) | 6 ft (1.83 m) 95° (+15,-80) |
| Drive Speed 2WD | 3.5 mph (5.6 km/h) |
| Drive Speed 4WD | 2.8 mph (4.5 km/h) |
| Gradeability 2WD/4WD | 25%/35% |
| Turning Radius, Axles Retracted – 4WS (Outside) | 13 ft 8 in (4.17 m) |
| Axle Oscillation | 8 in (20 cm) |
Dimensions 9 specs
| Platform Height | 86 ft (26.21 m) |
|---|---|
| Platform Size | 36 x 72 (0.91 x 1.83 m) |
| Overall Width (Axles Retracted) | 8 ft 2 in (2.49 m) |
| Overall Width (Axles Extended) | 10 ft (3.05 m) |
| Tailswing | 2 ft 11 in (89 cm) |
| Stowed Height | 9 ft 7 in (2.92 m) |
| Stowed Length | 36 ft 9 in (11.2 m) |
| Wheelbase | 10 ft (3.05 m) |
| Ground Clearance | 10 in (25 cm) |
Weight 2 specs
| Gross Vehicle Weight | 36,900 lb (16,742 kg) |
|---|---|
| Max. Ground Bearing Pressure | 118 psi (8.3 kg/cm²) |
Power / Engine 3 specs
| Dual Fuel Engine | Ford LRG-425 70 hp (52 kW) |
|---|---|
| Diesel Engine | Deutz F4L912 70 hp (52 kW) |
| Auxiliary Power | 12 V DC |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 26 gal (98 L) |
|---|---|
| Hydraulic Reservoir | 55 gal (208 L) |
