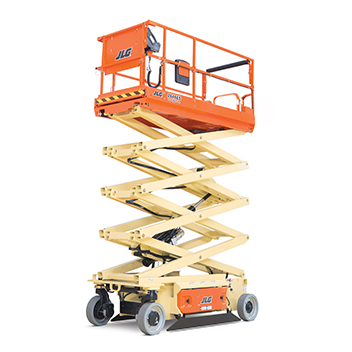

JLG 1532E2 Specs

Quick-reference specifications for the JLG 1532E2 scissor lift, compiled from published specifications.

Platform Capacity: 600 lb272 kg
Platform Height (Elevated): 15 ft4.5 m
Platform Height (Stowed): 37.5 in1.0 m
Gradeability: 25%

Performance 9 specs

Platform Height (Elevated)	15 ft (4.5 m)
Platform Height (Stowed)	37.5 in (1.0 m)
Platform Capacity	600 lb (272 kg)
Gradeability	25%
Inside Turning Radius	19 in (0.50 m)
Lift Time (No Load) – Down	28-35 seconds
Manual Platform Extension Capacity	250 lb (120 kg)
Ground Clearance – Platform Lowered	2.50 in (6.3 cm)
Ground Clearance – Platform Elevated	0.75 in (1.9 cm)

Dimensions 9 specs

Platform Size	31 in x 64 in (0.8 m x 1.6 m)
Platform Height (Lowered)	37.5 in (1.0 m)
Machine Height – Standard Handrails (Stowed)	76.5 in (2.0 m)
Machine Length	68.5 in (1.7 m)
Machine Width	31.75 in (0.8 m)
Wheelbase	52.25 in (1.3 m)
Length (Overall)	6 ft 1 in
Width (Overall)	2 ft 9 in
Height (Overall – Stowed)	6 ft 4 in

Weight 1 spec

Machine Weight	2,940 lb (1,334 kg)

Power / Engine 2 specs

Motor Voltage	24 Volts DC
Motor Power	4 hp

Hydraulics / Fluids 4 specs

Tire Size	12.5 x 4.5 – Solid, Non-Marking, Rib
Main Relief Pressure Max	3,200 psi (207 bar)
Lift Up Relief Pressure Max	2,000 psi (110 bar)
Steer Relief Pressure Max	2,000 psi (110 bar)
