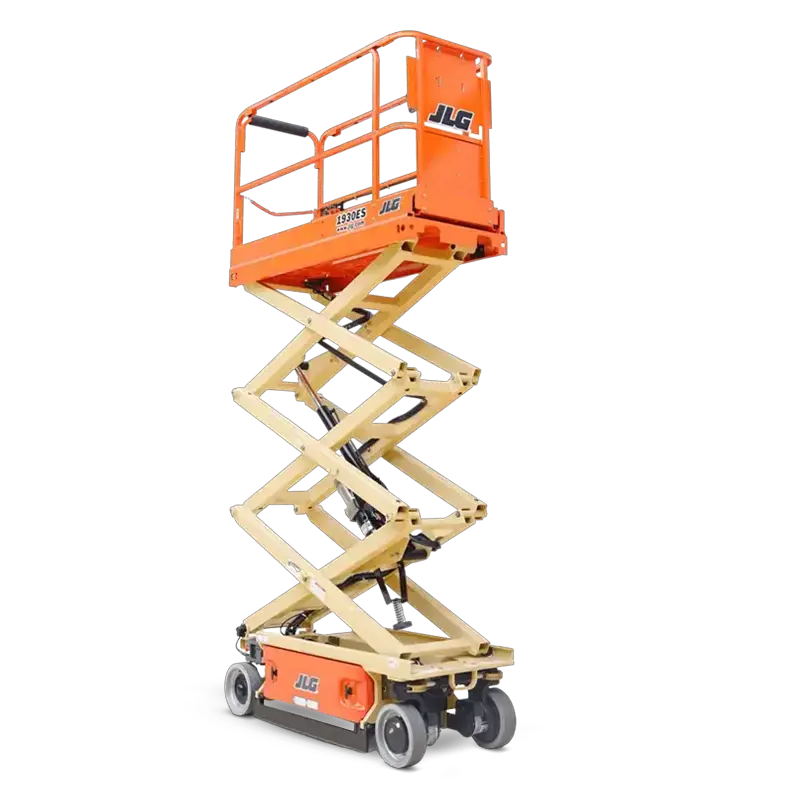

JLG 1930ES Specs
Quick-reference specifications for the JLG 1930ES scissor lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Capacity on Platform Extension
- 250 lb113 kg
- Platform Height–Elevated
- 18 ft 9 in5.72 m
- Weight
- 2,685 lb1,218 kg
Performance 3 specs
| Drive Speed–Lowered | 3.0 mph (4.82 km/h) |
|---|---|
| Turning Radius (Outside) | 69 in (1.75 m) |
| Platform Extension | 1930ES/2030ES/2630ES |
Dimensions 5 specs
| Platform Height–Elevated | 18 ft 9 in (5.72 m) |
|---|---|
| Overall Width | 1930ES/2030ES/2630ES |
| Wheelbase | 5 ft 3 in (1.6 m) |
| Ground Clearance | 1930ES/2030ES/2630ES |
| Platform Size | 30 x 73.5 in (0.76 x 1.87 m) |
Weight 2 specs
| Weight | 2,685 lb (1,218 kg) |
|---|---|
| Ground Bearing Pressure | 109 psi (7.66 kg/cm2) |
Hydraulics / Fluids 2 specs
| Platform Capacity | 500 lb (227 kg) |
|---|---|
| Capacity on Platform Extension | 250 lb (113 kg) |
