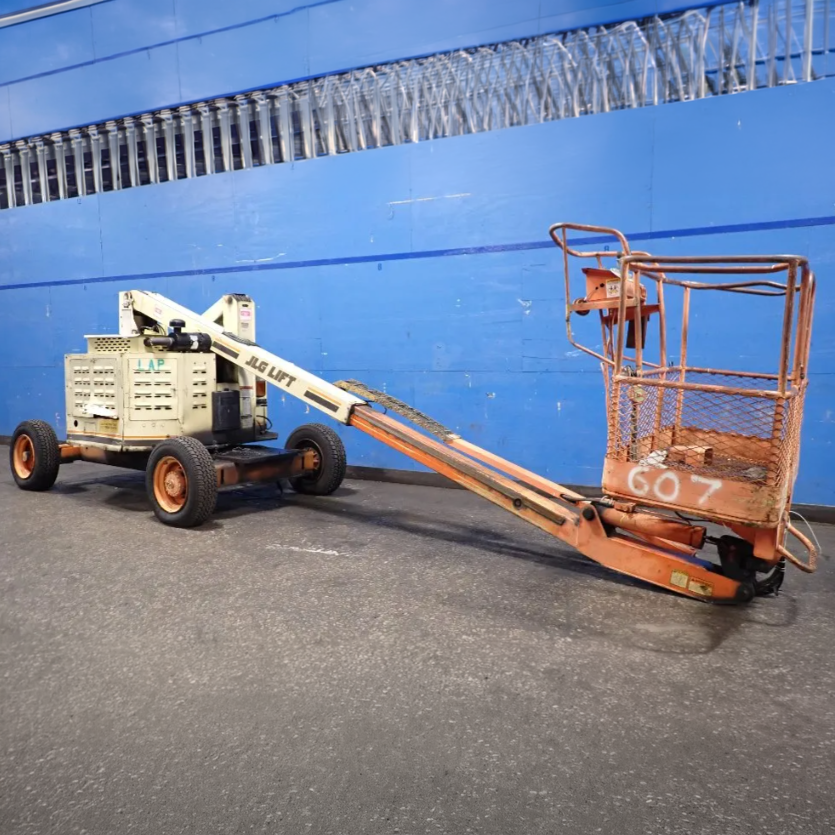

JLG 34HA Specs
Quick-reference specifications for the JLG 34HA boom lift, compiled from published specifications.
- Platform Capacity
- 500 lb227 kg
- Platform Height
- 31 ft 9 in
- Working Height (metric spec)
- 12.4 m
- Operating Weight
- 9800 lb
Performance 7 specs
| Platform Height | 31 ft 9 in |
|---|---|
| Horizontal Reach | 23 ft 7 in |
| Platform Capacity | 500 lb (227 kg) |
| Maximum Lifting Height | 40 ft 1 in |
| Working Height (metric spec) | 12.4 m |
| Max Reach Horizontal (metric spec) | 6.1 m |
| Net Load (metric spec) | 227 kg |
Dimensions 5 specs
| Length | 16 ft 9 in |
|---|---|
| Width | 6 ft 6 in |
| Height (stowed) | 6 ft 6 in |
| Platform Size | 30 x 60 in (0.76 x 1.52 m) |
| Persons Capacity | 2 |
Weight 2 specs
| Operating Weight | 9800 lb |
|---|---|
| Alternate Weight Record | 11160 lb |
