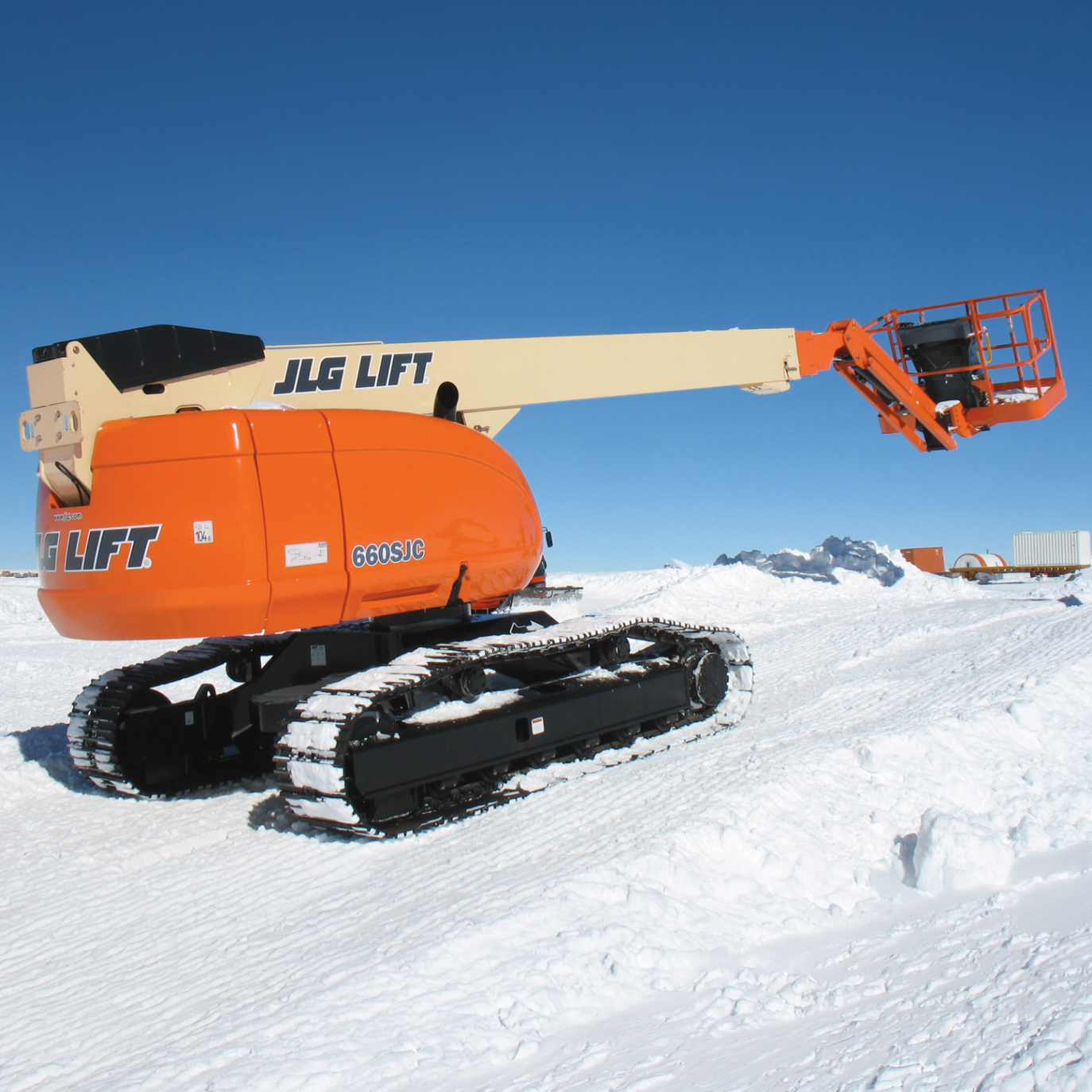

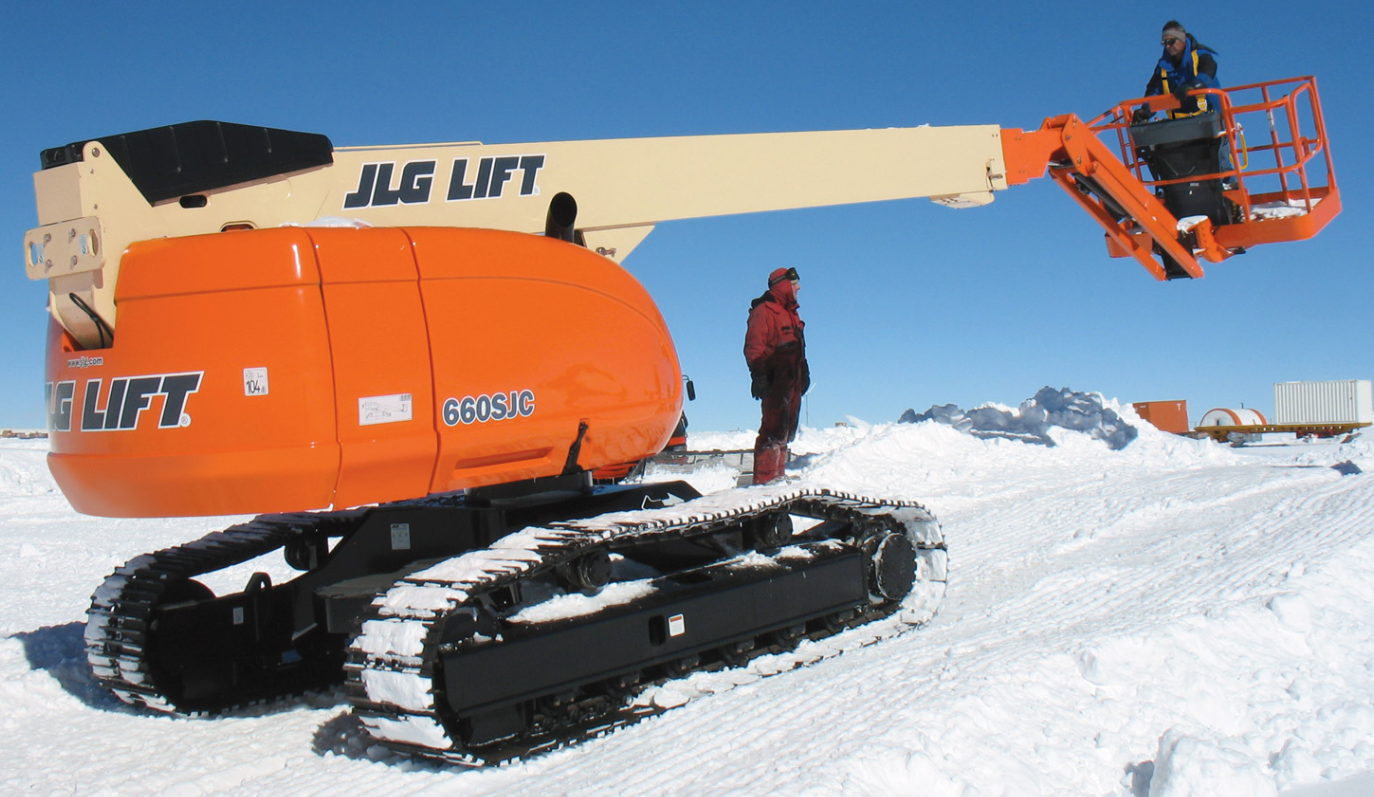

JLG 660SJC Spec Sheet
Quick-reference specifications for the JLG 660SJC. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity Restricted: 750-lb / 340-kg
Platform Height 65-ft 7-in /: 19.99-m
Horizontal Outreach 57-ft 0.6-in /: 17.39-m
Platform Capacity (Restricted) 750-lb /: 340-kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height 65-ft 7-in / | 19.99-m |
|---|---|
| Horizontal Outreach 57-ft 0.6-in / | 17.39-m |
| Platform Capacity Restricted | 750-lb / 340-kg |
| Swing | 360 Degrees Continuous |
| Platform Capacity (Restricted) 750-lb / | 340-kg |
| Platform Capacity (Unrestricted) 550-lb / | 249-kg |
| Jib Range of Articulation | 132 Degrees (+71, -61) |
| Gradeability | 55% |
| Tailswing 4-ft / | 1.22-m |
Dimensions
| Tracks Width | 20-in / .51-m |
|---|---|
| Platform Width 36-in / | 91-cm |
| Platform Length 96-in / | 2.44-m |
| Machine Width 8-ft 2-in / | 2.49-m |
| Machine Height 8-ft 1.2-in / | 2.47-m |
| Machine Length 35-ft 4.7-in / | 10.79-m |
| Ground Clearance 15-in / | 38-cm |
Weights & Electrical
| Auxiliary Power | 12V DC |
|---|
Powertrain & Systems
| Drive Speed 1.6-mph / | 2.6 km/h |
|---|
Hydraulics & Capacities
| Platform Rotator | 180 Degrees Hydraulic |
|---|---|
| Max. Ground Bearing Pressure 11.3 psi / | 0.8 kg/cm² |
| Fuel Tank Capacity 31 gal / | 117 L |
| Capacity 34 gal / | 129 L |
