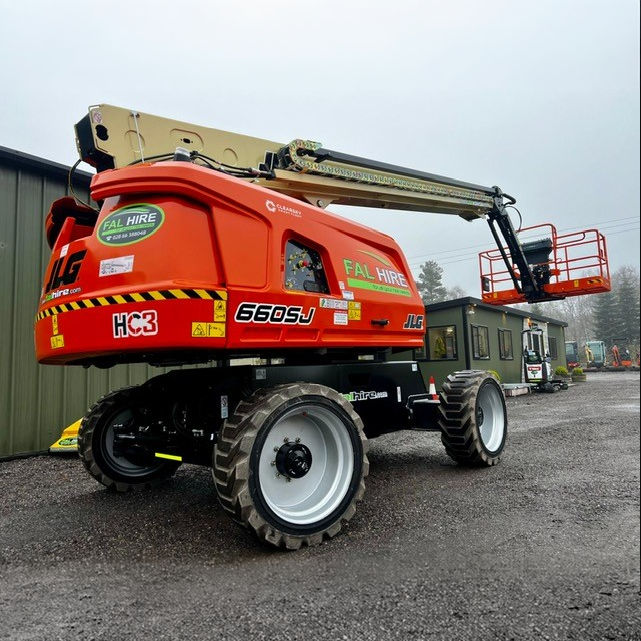

JLG 660SJ HC3 Spec Sheet
Quick-reference specifications for the JLG 660SJ HC3. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity Restricted 750-lb/1000-lb /: 340/454-kg
Platform Height 65-ft 8-in /: 20.02-m
Horizontal Outreach 57-ft 1-in /: 17.40-m
Platform Capacity Restricted 750/1000-lb /: 340/454-kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height 65-ft 8-in / | 20.02-m |
|---|---|
| Horizontal Outreach 57-ft 1-in / | 17.40-m |
| Platform Capacity Restricted 750-lb/1000-lb / | 340/454-kg |
| Swing | 360 Degrees Continuous |
| Platform Capacity Restricted 750/1000-lb / | 340/454-kg |
| Platform Capacity Unrestricted 660-lb / | 300-kg |
| Jib Length 6-ft / | 1.83-m |
| Jib Range of Articulation | 131 Degrees (+71, -61) |
| Gradeability 4WD | 45% |
| Turning Radius Inside/Outside 2WS Inside | 9-ft 6.3-in / 2.9-m Outside: 18-ft 3.9-in / 5.59-m |
| Turning Radius Inside/Outside 4WS Inside | 5-ft 3.9-in / 1.62-m Outside: 9-ft 11-in / 3.02-m |
| Tailswing 4-ft / | 1.22-m |
Dimensions
| Platform Width 36-in / | 0.91-m |
|---|---|
| Platform Length 96-in / | 2.44-m |
| Machine Width 8-ft 2-in / | 2.48-m |
| Machine Height 8-ft 5.4-in / | 2.58-m |
| Machine Length 33-ft 0.4-in / | 10.01-m |
| Wheelbase 8-ft 2.7-in / | 2.51-m |
| Ground Clearance 11.3-in / | 29-cm |
Weights & Electrical
| Auxiliary Power | 12V DC |
|---|
Powertrain & Systems
| Drive Speed 4WD 3.8 mph / | 6.1 km/h |
|---|---|
| Axle Oscillation 7.4-in / | 19-cm |
Hydraulics & Capacities
| Platform Rotator | 180 Degrees Hydraulic |
|---|---|
| Max. Ground Bearing Pressure 112 psi / | 7.9-kg/cm² |
| Fuel Tank Capacity 31 gal / | 117 L |
| Capacity 34 gal / | 129 L |
