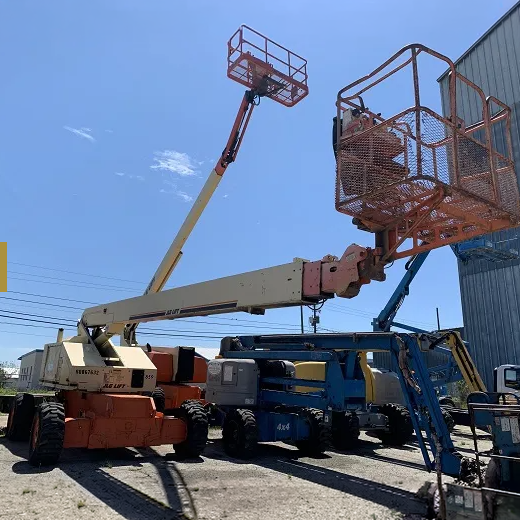

JLG 80HX Specs
Quick-reference specifications for the JLG 80HX boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity-Restricted
- 1000/750 lb450/340 kg
- Platform Height
- 80 ft24.38 m
- Gradeability 2WD/4WD
- 25%/35%
Performance 13 specs
| Horizontal Outreach | 70 ft 7 in (21.51 m) |
|---|---|
| Swing | 360° Continuous |
| Platform Capacity-Restricted | 1000/750 lb (450/340 kg) |
| Platform Capacity-Unrestricted | 500 lb (230 kg) |
| Platform Rotator | 180° Hydraulic |
| Drive Speed 2WD | 3.5 mph (5.6 km/h) |
| Drive Speed 4WD | 2.8 mph (4.5 km/h) |
| Gradeability 2WD/4WD | 25%/35% |
| Turning Radius, Axles Retracted 2WS (Inside/Outside) | 17 ft / 23 ft 8 in (5.18 m / 7.21 m) |
| Turning Radius, Axles Retracted 4WS (Outside) | 13 ft 8 in (4.17 m) |
| Turning Radius, Axles Extended 2WS (Inside/Outside) | 16 ft 2 in / 25 ft 4 in (4.93 m / 7.72 m) |
| Turning Radius, Axles Extended 4WS (Outside) | 14 ft 5 in (4.39 m) |
| Axle Oscillation | 8 in (20 cm) |
Dimensions 9 specs
| Platform Height | 80 ft (24.38 m) |
|---|---|
| Platform Size | 36 x 96 in (0.91 x 2.44 m) |
| Overall Width (Axles Retracted) | 8 ft 2 in (2.49 m) |
| Overall Width (Axles Extended) | 10 ft (3.05 m) |
| Tailswing | 2 ft 11 in (89 cm) |
| Stowed Height | 9 ft 7 in (2.92 m) |
| Stowed Length | 33 ft 7 in (10.24 m) |
| Wheelbase | 10 ft (3.05 m) |
| Ground Clearance | 10 in (25 cm) |
Weight 2 specs
| Gross Vehicle Weight | 31,800 lb (14,428 kg) |
|---|---|
| Max. Ground Bearing Pressure | 103 psi (7.2 kg/cm²) |
Power / Engine 3 specs
| Dual Fuel Engine | Ford LRG-425 70 hp (52 kW) |
|---|---|
| Diesel Engine | Deutz F4L912 70 hp (52 kW) |
| Auxiliary Power | 12 V DC |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 26 gal (98 L) |
|---|---|
| Hydraulic Reservoir | 55 gal (208 L) |
