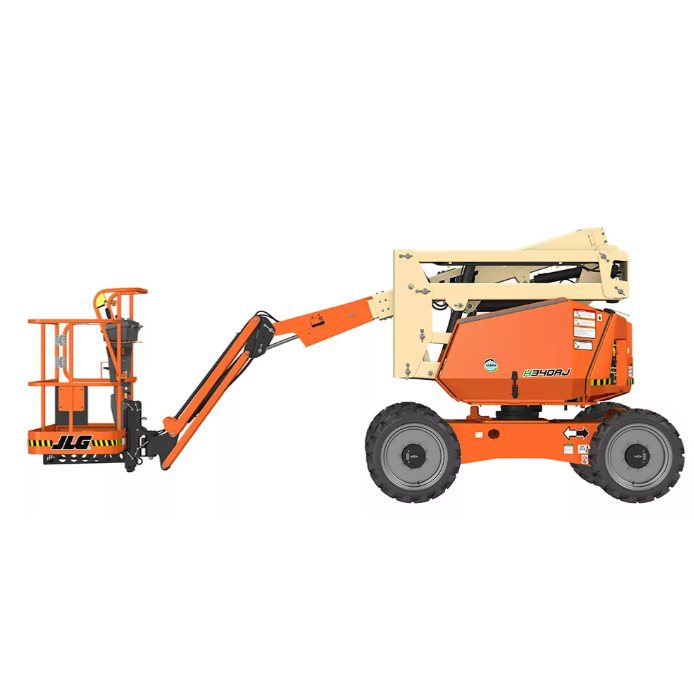

JLG H340AJ Specs
Quick-reference specifications for the JLG H340AJ boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Platform Height
- 33 ft 10.5 in10.33 m
- Weight
- 9,860 lb4,472 kg
- Gradeability
- 45%
Performance 12 specs
| Horizontal Outreach | 19 ft 11 in (6.06 m) |
|---|---|
| Up and Over Reach | 17 ft (5.17 m) |
| Platform Capacity | 500 lb (227 kg) |
| Up and Over Clearance | 17 ft (5.17 m) |
| Swing | 355 Degrees Non-Continuous |
| Jib | 4 ft (1.22 m) |
| Range of Articulation | 139 Degrees (+79, -60) |
| Drive Speed (Lowered) | 3.7 mph (5.95 km/h) |
| Gradeability | 45% |
| Turning Radius Inside (2WS/4WS) | 5 ft (1.52 m) |
| Turning Radius Outside (2WS/4WS | 13 ft (3.96 m) |
| Platform Rotator | 355 Degree Non-Continuous |
Dimensions 9 specs
| Platform Height | 33 ft 10.5 in (10.33 m) |
|---|---|
| Platform Width | 30 in (76 cm) |
| Platform Length | 60 in (1.22 m) |
| Machine Width | 6 ft 4 in (1.93 m) |
| Tailswing | 2 in (5.08 cm) |
| Machine Height | 6 ft 7 in (2 m) |
| Machine Length | 18 ft 2 in (5.52 m) |
| Wheelbase | 6 ft 2 in (1.87 m) |
| Ground Clearance | 10 in (26 cm) |
Weight 2 specs
| Weight | 9,860 lb (4,472 kg) |
|---|---|
| Max. Ground Bearing Pressure | 64 psi (4.5 kg/cm²) |
Power / Engine 1 spec
| Batteries | 8 x 12 V / 100 amp-hr AGM |
|---|
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 13 gal (49.2 L) |
|---|---|
| Hydraulic System – Tank Capacity | 20.6 gal (77.9 L) |
