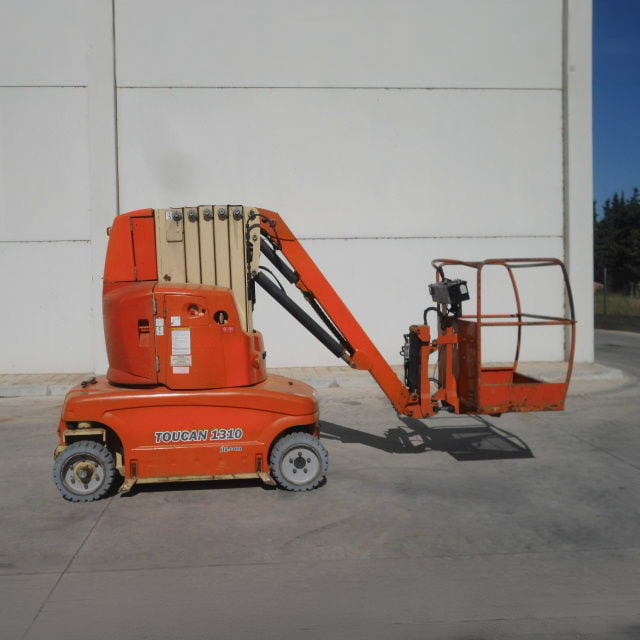

JLG Toucan 1310 Specs
Quick-reference specifications for the JLG Toucan 1310 vertical lift, compiled from published specifications.
- Platform Height (Without Platform Rotation)
- 33.1 ft10.10 m
Performance 11 specs
| Maximum Work Load | 440 lb (200 kg) |
|---|---|
| Platform Height (Without Platform Rotation) | 33.1 ft (10.10 m) |
| Platform Height (With Platform Rotation) | 36.4 ft (11.10 m) |
| Horizontal Reach (from centerline) | 15.4 ft (4.70 m) |
| Horizontal Reach (from rear wheel edge) | 12.0 ft (3.65 m) |
| Horizontal Reach (from side wheel edge) | 13.3 ft (4.06 m) |
| Up and Over Clearance | 23.6 ft (7.20 m) |
| Maximum Wind Speed | 45 km/h (12.5 m/s) |
| Hydraulic System Pressure | 24 MPa |
| Maximum Horizontal Manual Force | 400 N |
| Electrical System Voltage | 24 VDC |
Dimensions 5 specs
| Overall Length | 13.4 ft (4.07 m) |
|---|---|
| Overall Height | 7.2 ft (2.19 m) |
| Overall Width | 4.4 ft (1.35 m) |
| Platform Length | 2.3 ft (0.7 m) |
| Platform Width | 3.6 ft (1.1 m) |
Weight 2 specs
| Gross Machine Weight (Platform Empty) | 12,346 lb (5600 kg) |
|---|---|
| Maximum Wheel Load | 6,614 lb (3000 kg) |
