Boom Lift Spec Sheet

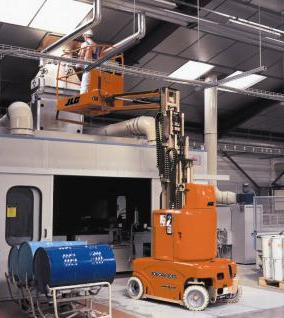

JLG Toucan 910 Spec Sheet
Quick-reference specifications for the JLG Toucan 910. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform capacity: 200 kg 1
Working height: 9.00 m
Platform height: 7.00 m
Horizontal outreach (standard platform): 3.10 m
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Working height | 9.00 m |
|---|---|
| Platform height | 7.00 m |
| Horizontal outreach (standard platform) | 3.10 m |
| Swing (not continuous) | 343° |
| Platform capacity | 200 kg 1 |
| C. Tailswing | 8 cm |
| Turning radius (outside) | 1.75 m |
| Turning radius (inside) | 0.00 m |
| Gradeability | 20% |
Dimensions
| A. Platform size (W x L) standard platform 0.95 m x | 1.39 m |
|---|---|
| B. Overall Width | 0.99 m |
| D. Stowed Height | 1.99 m |
| E. Overall Length (standard platform) | 2.78 m |
| F. Wheelbase | 1.30 m |
| G. Ground clearance | 8 cm |
Weights & Electrical
| Two Wheel Hydraulic Drive 24V | 620 A/hr full traction batteries |
|---|---|
| On-board | 110V/230V battery charger |
| Sculptured polyester hoods | 1 Included with circuit breaker on AC cable to |
| Accessories Heavy duty steel roller mast with | 343º |
| Chain slack detection system | 2 degree tilt alarm and indicator light |
| Electrical system | 24V DC |
| Batteries | 24V – 620 A/hr |
| Charger | 24V – 70A |
| Pump motor 4.8 kW | 24V DC |
Powertrain & Systems
| platform option. NB 110V or | 230V power must |
|---|---|
| AC power cable to platform | 8 mm air line to platform |
| Drive speed – lowered | 4 km/h |
| Drive speed – elevated | 0.65 km/h |
| Tyres (solid) 16 x 5 x | 10.5 |
| Drive motors | 2 hydraulic motors |
Hydraulics & Capacities
| Maximum ground bearing pressure | 18.6 kg/cm2 |
|---|---|
| Hydraulic system | 35 L |
