Vertical Mast · JLG

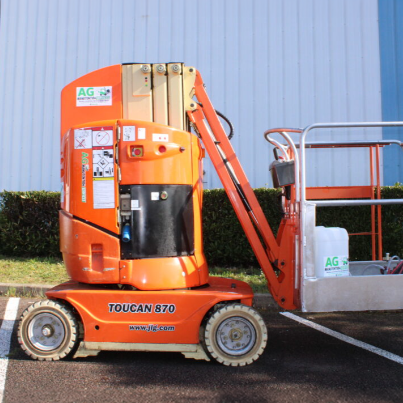

JLG Toucan 870 Specs
Quick-reference specifications for the JLG Toucan 870 vertical mast, taken from the manufacturer’s spec sheet.
- Platform capacity
- 220 kg
- Platform height
- 6.72 m
- Working height
- 8.72 m
- Gradeability
- 15%
Performance 11 specs
| Working height | 8.72 m |
|---|---|
| Horizontal outreach (standard platform) | 3.14 m |
| Horizontal outreach (aluminium platform) | 3.46 m |
| Swing (not continuous) | 180° |
| Platform capacity | 220 kg |
| Jib – range of articulation | 128° (+66°/-62°) |
| Drive speed – lowered | 3.70 km/h |
| Drive speed – elevated | 0.65 km/h |
| Turning radius (outside) | 2.40 m |
| Turning radius (inside) | 1.05 m |
| Gradeability | 15% |
Dimensions 12 specs
| Platform height | 6.72 m |
|---|---|
| Up and over Height | 5.35 m |
| Jib – overall length | 1.48 m |
| Platform size (W x L) standard platform | 0.90 m x 0.70 m |
| Platform size (W x L) aluminium platform | 0.90 m x 1.01 m |
| Overall width | 0.99 m |
| Tailswing | 10.5 cm |
| Stowed height | 1.99 m |
| Overall length (standard platform) | 2.68 m |
| Overall length (aluminium platform) | 2.99 m |
| Wheelbase | 1.20 m |
| Ground clearance | 8 cm |
Weight 3 specs
| Machine weight – standard platform | 2,980 kg |
|---|---|
| Machine weight – aluminium platform | 2,980 kg |
| Maximum ground bearing pressure | 16.8 kg/cm² |
Power / Engine 4 specs
| Batteries | 24 V – 620 A/hr |
|---|---|
| Charger | 24 V – 70A |
| Drive motors | 2 hydraulic motors |
| Brakes | Disc |
Hydraulics / Fluids 2 specs
| Pump motor | 4.8 kW 24 V DC |
|---|---|
| Hydraulic system | 30 L |
