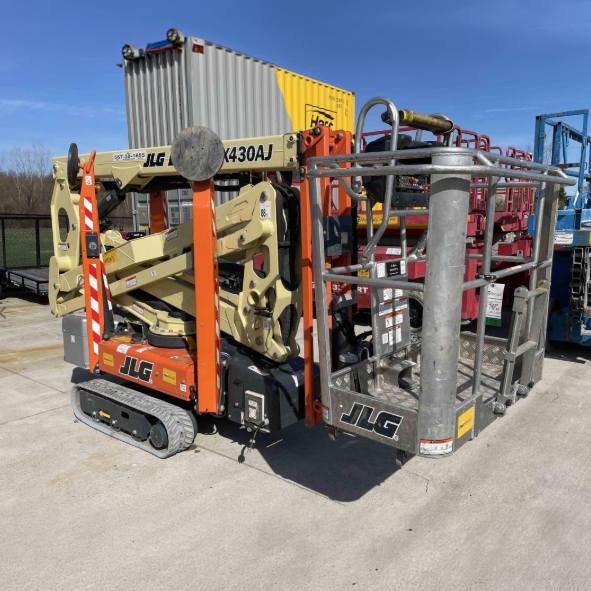

JLG X430AJ Specs
Quick-reference specifications for the JLG X430AJ boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Platform Height
- 43 ft 6 in13.30 m
- Gradeability
- 28%
Performance 6 specs
| Horizontal Outreach | 21 ft 7 in (6.60 m) |
|---|---|
| Platform Capacity | 500 lb (227 kg) |
| Swing | 360 Degrees Non-continuous |
| Drive Speed | 0.87 mph (2.40 km/h) |
| Max Stabilization Slope | 12 Degrees |
| Gradeability | 28% |
Dimensions 12 specs
| Platform Height | 43 ft 6 in (13.30 m) |
|---|---|
| Max Approach / Depart Angle | 20° / 36° |
| Platform Width | 30 in (.76 m) |
| Platform Length | 52 in (1.34 m) |
| Machine Width | 29 in (75 cm) |
| Machine Height | 6 ft 6 in (1.98 m) |
| Machine Length | 13 ft 2 in (4.02 m) |
| Machine Length Without Platform | 11 ft 2 in (3.40 m) |
| Track length | 4 ft 1 in (1.24 m) |
| Outrigger Footprint Length | 9 ft 8 in (3.0 m) |
| Outrigger Footprint Width | 9 ft 8 in (3.0 m) |
| Outrigger Pad Diameter | 11.8 in (30 cm) |
Weight 3 specs
| Ground Bearing Pressure (Tracks) | 8.20 psi (0.58 kg/cm2) |
|---|---|
| Ground Bearing Pressure (Outriggers) | 34.1 psi (2.40 kg/cm²) |
| Weight (Diesel) | 4,392 lb (1,992 kg) |
Power / Engine 3 specs
| Engine: Honda iGX390 | 11.7 hp (8.7 kW) |
|---|---|
| Motor | 120 V AC / 60 HZ |
| Optional: 36V Lithium Ion Battery | 36 V / 100 Ah |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 1.4 gal (5.3 L) |
|---|---|
| Hydraulic System – Capacity | 6.34 gal (24 L) |
