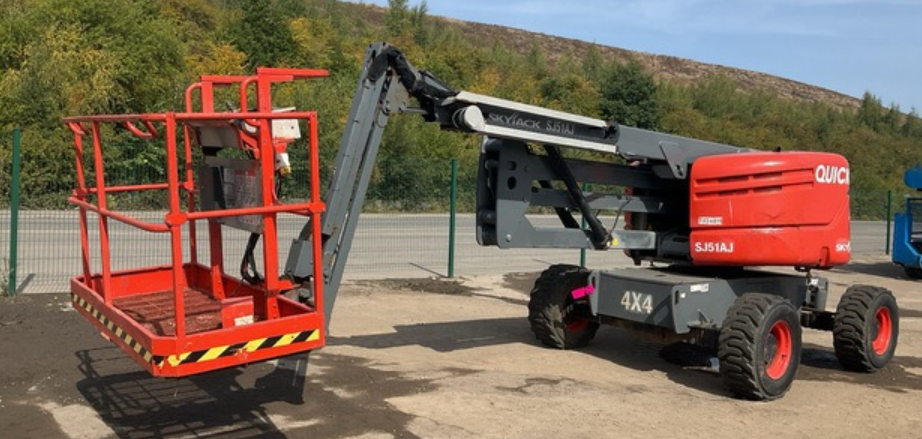

Skyjack SJ51AJ Spec Sheet
Quick-reference specifications for the Skyjack SJ51AJ. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Height: 14.10 m
D Stowed Height: 2.06 m
Capacity: 227 kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height | 14.10 m |
|---|---|
| Up and Over Height | 7.45 m |
| Jib Length | 1.52 m |
| Gradeability | 45% |
| Turning Radius (Inside) | 2.48 m |
| Turning Radius (Outside) | 5.15 m |
| Capacity | 227 kg |
Dimensions
| Work Height | 16.10 m |
|---|---|
| A Platform Size 1.83 x | 0.76 m |
| B Stowed Width | 2.29 m |
| D Stowed Height | 2.06 m |
| E Transportation Height | 2.16 m |
| F Stowed Length | 6.35 m |
| G Transportation Length | 5.97 m |
| H Wheelbase | 2.03 m |
| I Ground Clearance | 0.40 m |
Weights & Electrical
| Horizontal Reach | 7.54 m |
|---|---|
| Working Reach | 8.19 m |
| Weight | 6500 kg |
| CE marked work platforms are in conformance to Machinery Directive | 2006/42/EC. |
| Skyjack UK Unit | 1, Maes-y-Clawdd |
| info@skyjackeurope.co.uk | |
| Skyjack SAS (France) | 74 Rue Sibert |
Powertrain & Systems
| Axle Oscillation | 0.20 m |
|---|---|
| Drive Speed (High speed) | 4 km/h |
| Tyre Size 12 x | 16.5 |
| Diesel Engine | 18.5kw (24.8hp) |
Hydraulics & Capacities
| Fuel Tank Capacity | 64 L |
|---|---|
| Hydraulic Reservoir | 91 L |
