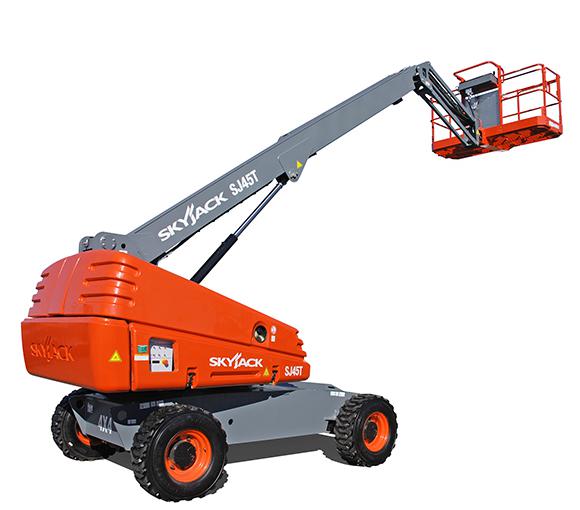

Skyjack SJ45T Spec Sheet
Quick-reference specifications for the Skyjack SJ45T. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Height: 40’7” (12.37 m)
D Stowed Height: 94” (2.39 m)
Capacity: 650 lbs (295 kg)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height | 40’7” (12.37 m) |
|---|---|
| C Tailswing | 37” (0.94 m) |
| Gradeability | 50% |
| Turning Radius (Inside) | 84” (2.13 m) |
| Turning Radius (Outside) | 198” (5.03 m) |
| Capacity | 650 lbs (295 kg) |
Dimensions
| Work Height | 46’7” (14.20 m) |
|---|---|
| A Platform Size | 36” x 96” (0.91 x 2.44 m) |
| B Stowed Width | 90” (2.29 m) |
| D Stowed Height | 94” (2.39 m) |
| E Stowed Length | 25’5” (7.74 m) |
| F Wheelbase | 96” (2.44 m) |
| G Ground Clearance | 11” (0.28 m) |
Weights & Electrical
| temperatures can reach | 14°F / -10°C (Includes cold start engine oil, battery blanket, |
|---|---|
| Horizontal Reach | 34’ (10.36 m) |
| Weight | 13,960 lbs (6,332 kg) |
| Skyjack Head Office 55 Campbell Rd. Guelph, ON Canada N1H | 1B9 |
| skyjack@skyjack.com |
Powertrain & Systems
| Axle Oscillation | 5” (12.70 cm) |
|---|---|
| Drive Speed (High speed) | 4.5 mph (7.2 km/h) |
| Tire Size 12 x | 16.5 |
| Diesel Engine | 48 HP |
| Dual Fuel Engine | 61 HP |
Hydraulics & Capacities
| Local Floor Load ( With Rated Load) | 130 psi (896 kPa) |
|---|---|
| Fuel Tank Capacity | 45 gallon (170 L) |
| Hydraulic Reservoir | 59 gallon (223 L) |
