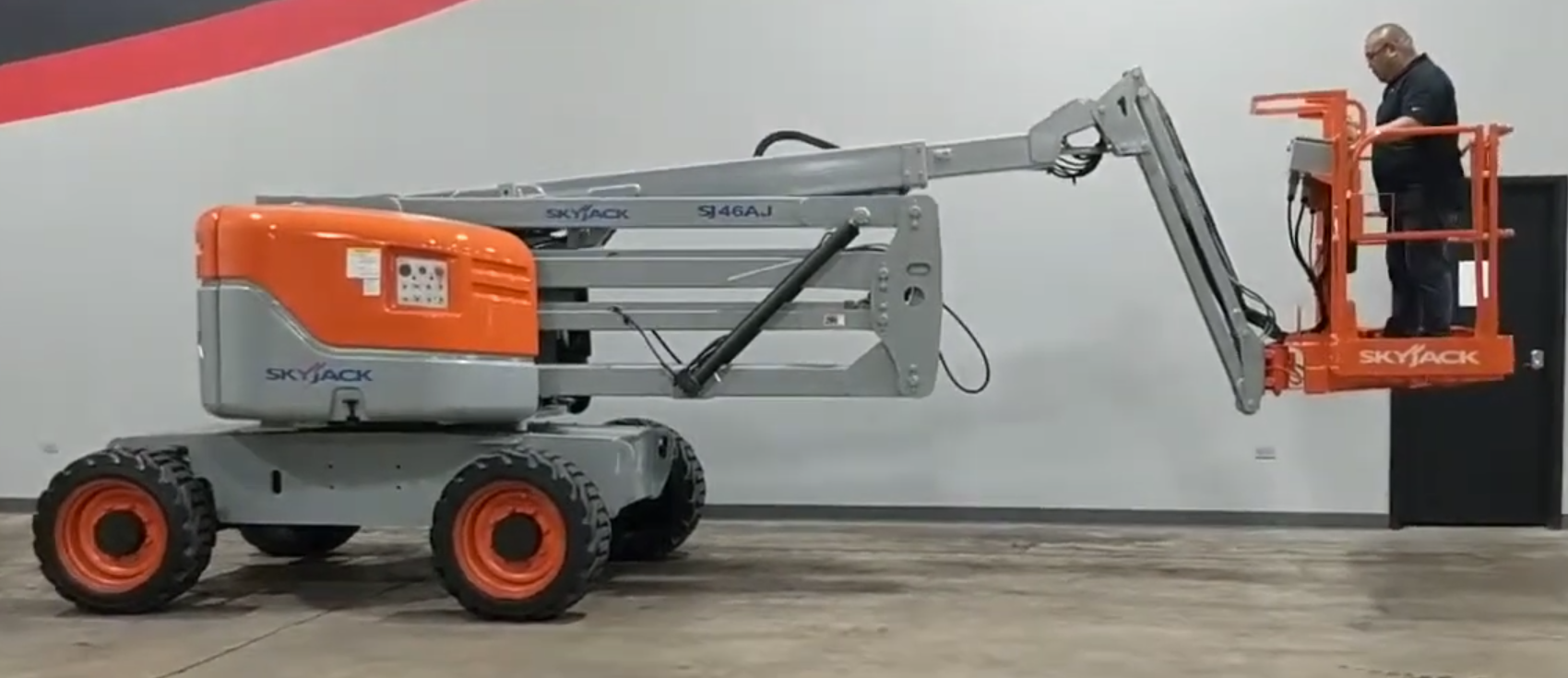

Skyjack SJ46AJ Spec Sheet
Quick-reference specifications for the Skyjack SJ46AJ. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Height: 46’3” (14.10 m)
D Stowed Height: 82” (2.06 m)
Capacity: 500 lbs (227 kg)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height | 46’3” (14.10 m) |
|---|---|
| Up and Over Height | 24’5” (7.45 m) |
| Jib Length | 5’ (1.52 m) |
| Gradeability | 45% |
| Turning Radius (Inside) | 98” (2.49 m) |
| Turning Radius (Outside) | 178” (4.52 m) |
| Capacity | 500 lbs (227 kg) |
Dimensions
| Work Height | 52’3” (15.93 m) |
|---|---|
| A Platform Size | 30” x 72” (0.76 x 1.83 m) |
| B Stowed Width | 90” (2.29 m) |
| D Stowed Height | 82” (2.06 m) |
| E Stowed Length | 20’ 10” (6.35 m) |
| F Wheelbase | 80” (2.03 m) |
| G Ground Clearance | 16” (0.39 m) |
Weights & Electrical
| temperatures can reach | 14°F / -10°C (Includes cold start engine oil, battery blanket, |
|---|---|
| Horizontal Reach | 24’9” (7.54 m) |
| Weight | 13,300 lbs (6,033 kg) |
| Skyjack Head Office 55 Campbell Rd. Guelph, ON Canada N1H | 1B9 |
| skyjack@skyjack.com |
Powertrain & Systems
| Axle Oscillation | 5” (12.70 cm) |
|---|---|
| Drive Speed (High speed) | 4.8 mph (7.7 km/h) |
| Tire Size 12 x | 16.5 |
| Diesel Engine | 48 HP |
| Dual Fuel Engine | 61 HP |
Hydraulics & Capacities
| Local Floor Load ( With Rated Load) | 115 psi (793 kPa) |
|---|---|
| Fuel Tank Capacity | 17 gallon (64 L) |
| Hydraulic Reservoir | 24 gallon (91 L) |
