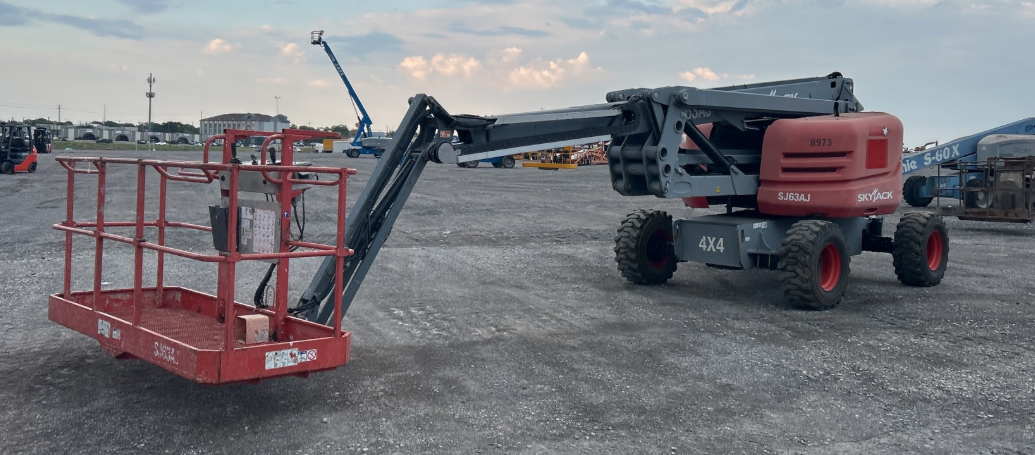

Skyjack SJ63AJ Spec Sheet
Quick-reference specifications for the Skyjack SJ63AJ. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Height: 19.38 m
D Stowed Height: 2.54 m
Capacity: 227 kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height | 19.38 m |
|---|---|
| Up and Over Height | 8.38 m |
| Jib Length | 1.68 m |
| Gradeability | 45% |
| Turning Radius (Inside) | 2.21 m |
| Turning Radius (Outside) | 5.31 m |
| Capacity | 227 kg |
Dimensions
| Work Height | 21.38 m |
|---|---|
| A Platform Size 0.91 x | 2.44 m |
| B Stowed Width | 2.44 m |
| D Stowed Height | 2.54 m |
| E Transportation Height | 2.79 m |
| F Stowed Length | 9.14 m |
| G Transportation Length | 7.75 m |
| H Wheelbase | 2.44 m |
| I Ground Clearance | 0.33 m |
Weights & Electrical
| Skyjack Australia Pty Ltd Unit 1, | 35 Honeycomb Drive |
|---|---|
| jcranmer@skyjack.com AU/NZ/05/2019 | |
| Horizontal Reach | 12.19 m |
Powertrain & Systems
| Axle Oscillation | 10.16 cm |
|---|---|
| Drive Speed (High speed) | 7.3 km/h |
| Tyre Size | 355/55D625 |
| Diesel Engine Deutz D2011L04i – | 65 HP |
Hydraulics & Capacities
| Fuel Tank Capacity | 115 L |
|---|---|
| Hydraulic Reservoir | 115 L |
