Equipment Spec Sheet

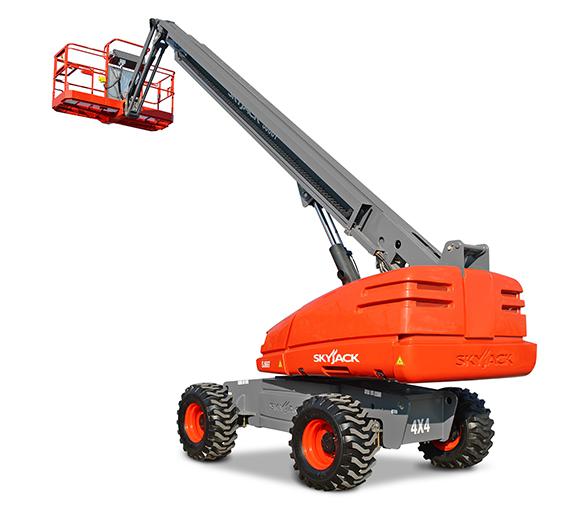

Skyjack SJ61T Spec Sheet
Quick-reference specifications for the Skyjack SJ61T. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Height: 61’ 3” (18.7 m)
Stowed Height: 101” (2.6 m)
Capacity: 500 lbs (227 kg)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height | 61’ 3” (18.7 m) |
|---|---|
| Tailswing | 47” (1.2 m) |
| Turning Radius (Inside) – 4WD | 111” (2.8 m) |
| Capacity | 500 lbs (227 kg) |
Dimensions
| Work Height | 67’ 3” (20.5 m) |
|---|---|
| Platform Size | 36” x 96” (0.9 x 2.4 m) |
| Stowed Width | 96” (2.4 m) |
| Stowed Height | 101” (2.6 m) |
| Stowed Length | 30’ 4” (9.2 m) |
| Wheelbase | 96” (2.4 m) |
| Ground Clearance | 16” (0.4 m) |
Weights & Electrical
| Horizontal Reach | 51’ 3” (15.6 m) |
|---|---|
| Weight | 23,800 lbs (10,795 kg) |
| skyjack@skyjack.com |
Powertrain & Systems
| as well as a | 45 degree steering angle which results in the industry’s |
|---|---|
| cooler, | 3-phase power connection in platform, welder mount, and Lincoln V275-S welder) |
| Axle Oscillation | 10” (0.3 m) |
| Drive Speed (stowed) | 4.5 mph (7.2 km/h) |
| Drive Speed (raised) | 0.5 mph (0.8 km/h) |
