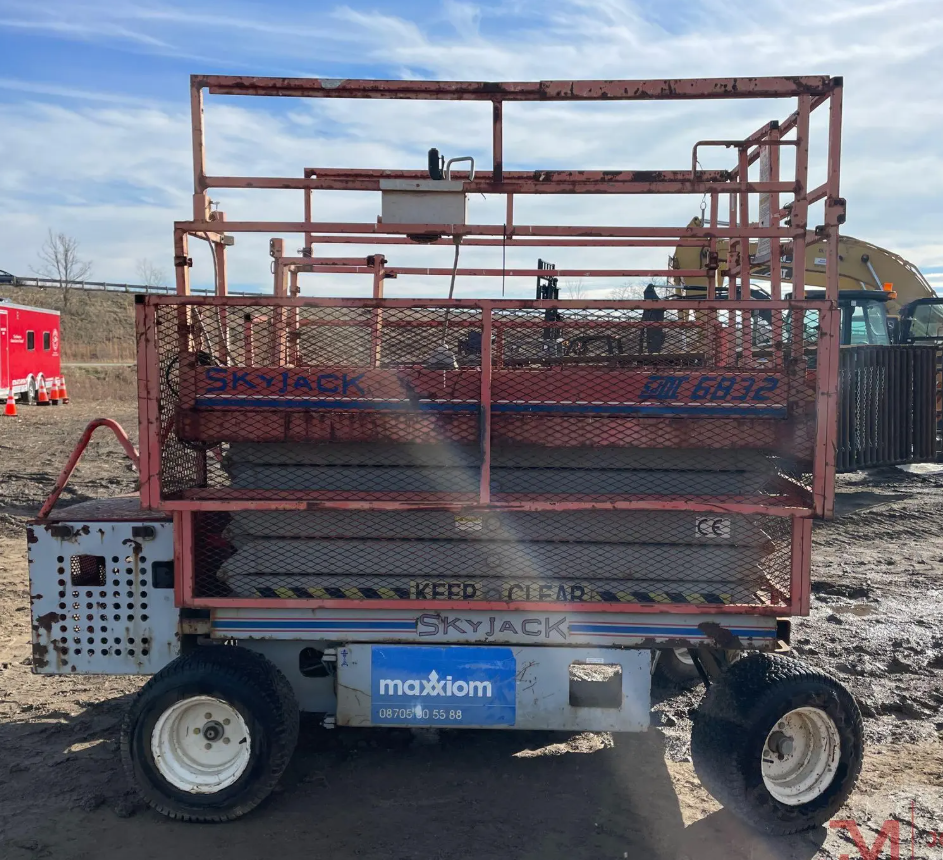

Skyjack SJIII 6832 Spec Sheet
Quick-reference specifications for the Skyjack SJIII 6832. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
B Raised Platform Height: 26’ (7.92 m)
D Overall Width: 69.5” (1.76 m)
F Stowed Height (Rails Up): 93.5” (2.38 m)
Capacity (Overall): 1,250 lbs (567 kg)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| B Raised Platform Height | 26’ (7.92 m) |
|---|---|
| C Lowered Platform Height | 48.5” (1.23 m) |
| Gradeability | 45% |
| Turning Radius (Inside) | 60” (1.52 m) |
| Turning Radius (Outside) | 156” (3.96 m) |
| Capacity (Overall) | 1,250 lbs (567 kg) |
| Distributed Capacity (Main Platform) | 950 lbs (431 kg) |
| Distributed Capacity (Extension Deck) | 300 lbs (136 kg) |
Dimensions
| A Work Height | 32’ (9.75 m) |
|---|---|
| D Overall Width | 69.5” (1.76 m) |
| E Overall Length | 107” (2.72 m) |
| F Stowed Height (Rails Up) | 93.5” (2.38 m) |
| G Stowed Height (Rails Down) | 63.5” (1.61 m) |
| H Platform Width (Inside Dimension) | 56” (1.42 m) |
| I Platform Length (Inside Dimension) | 96” (2.44 m) |
| Ground Clearance | 8” (0.20 m) |
| Wheelbase | 80.5” (2.04 m) |
Weights & Electrical
| Weight | 6,460 lbs (2,930 kg) |
|---|---|
| Outrigger Leveling (Front to Back / Side to Side) 5° / | 8° |
| Skyjack Head Office 55 Campbell Rd. Guelph, ON Canada N1H | 1B9 |
| skyjack@skyjack.com |
Powertrain & Systems
| Drive Speed (Stowed) | 3.8 mph (6.1 km/h) |
|---|---|
| Drive Speed (Raised) | 0.4 mph (0.6 km/h) |
| Diesel Engine | 24.8 HP Kubota |
| Tire Size 26 x | 12 |
Hydraulics & Capacities
| Local Floor Load (With Rated Load) | 190 psi (1,310 kPa) |
|---|---|
| Fuel Tank | 23 gal (87 L) |
| Hydraulic Reservoir | 23 gal (87 L) |
