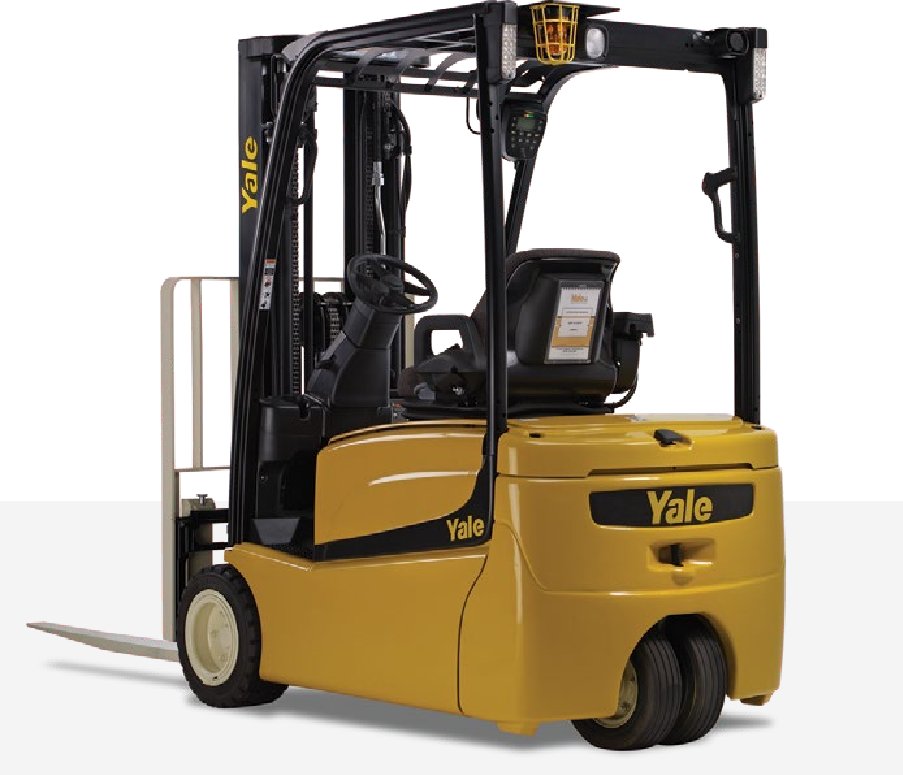

Yale ERP040VT Specs
Quick-reference specifications for the Yale ERP040VT forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height – Top of Fork
- 119 in3,032 mm
- Gradeability – Full Load @ 36V (5-min rating)
- 23.6%
Performance 14 specs
| Mech levers/mini levers | 3rd and 4th function |
|---|---|
| Load Capacity | 4,000 lb (1,814 kg) |
| Load Center | 24 in (610 mm) |
| Travel Speed – Full Load (36V/48V), Extended Shift OFF | 9.8 mph (15.7 km/h) |
| Travel Speed – Full Load (36V/48V), Extended Shift ON | 8.7 mph (14.0 km/h) |
| Lifting Speed – Full Load @ 36V, Std 2-Stage Mast | 67 ft/min |
| Lifting Speed – Full Load @ 48V, Std 2-Stage Mast | 83 ft/min |
| Lowering Speed – Full Load, Std 2-Stage Mast | 100 ft/min |
| Gradeability – Full Load @ 36V (5-min rating) | 23.6% |
| Gradeability – Full Load @ 48V (5-min rating) | 21% |
| Turning Radius (Outside) | 62.1 in (1,577 mm) |
| Traction Motors (Dual) @ 36V, 60-Min Rating | 6.4 hp (4.8 kW) each |
| Traction Motors (Dual) @ 48V, 60-Min Rating | 6.7 hp (5.0 kW) each |
| Pump Motor, 15-Min Rating | 16.1 hp (12.0 kW) |
Dimensions 10 specs
| Maximum Lift Height – Top of Fork | 119 in (3,032 mm) |
|---|---|
| Mast Lowered Height (Standard) | 78 in (1,980 mm) |
| Overhead Guard Height – Standard/Flat Plate/Drive-in Rack | 81.5 in / 77.9 in / 81.5 in (2,070 / 1,979 / 2,070 mm) |
| Length to Fork Face | 74.9 in (1,903 mm) |
| Overall Width (Standard Tires) | 43.9 in (1,116 mm) |
| Right Angle Stack (with 48″ x 40″ pallet) | 122.7 in (3,117 mm) |
| Wheelbase | 54.6 in (1,386 mm) |
| ForkDimensions(TxWxL) | 1.6 x 3.9 x 42 in (40 x 100 x 1,067 mm) |
| Tilt Range – Standard (Forward/Backward) | 5°F / 5°B |
| Tilt Range – Optional | 10°F / 5°B or 5°F / 4°B |
Weight 3 specs
| Weight Without Battery | 5,270 lb (2,390 kg) |
|---|---|
| Battery Weight (36V, typical) | 2,100 lb (953 kg) |
| Battery Weight (48V, typical) | 2,100 lb (953 kg) |
Power / Engine 1 spec
| Voltage Options | 36 V or 48 V |
|---|
Hydraulics / Fluids 3 specs
| Attachment Relief Pressure – Mechanical Levers | 2,611 psi (180 bar) |
|---|---|
| Attachment Relief Pressure – Mini Levers | 2,248 psi (155 bar) |
| Auxiliary Oil Flow – 3rd and 4th Function | 5.3 / 10.6 gal/min (20 / 40 l/min) |
