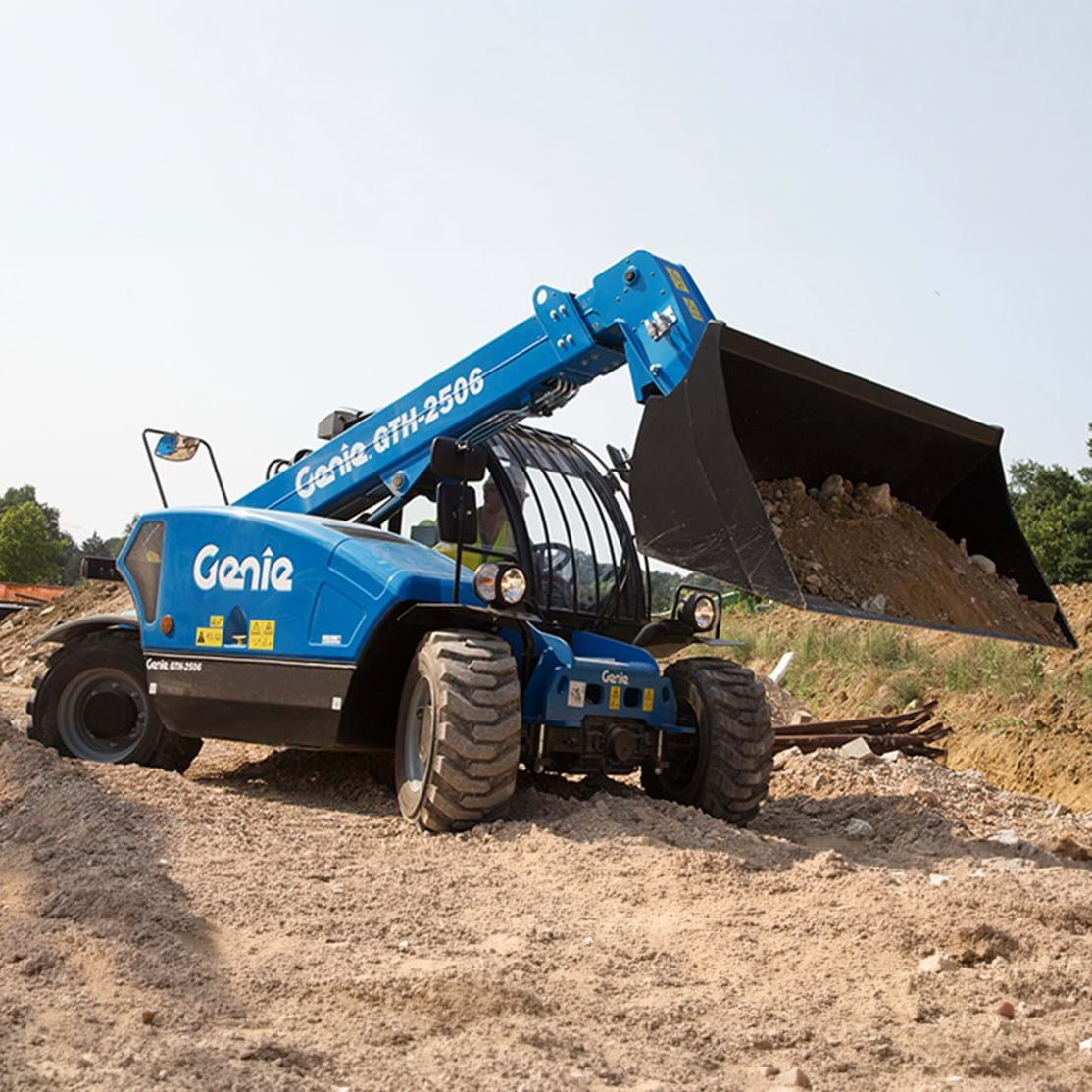

Genie 2506 Spec Sheet
Quick-reference specifications for the Genie 2506. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Forward reach maximum: 3.33 m
Lifting capacity maximum: 2,500 kg
Overall length: 5.04 m
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Lifting capacity maximum | 2,500 kg |
|---|---|
| Lift capacity at maximum height | 2,000 kg |
| Lift capacity at maximum reach | 900 kg |
| Forward reach maximum | 3.33 m |
| Inside/outside turning radius | 1.6 m/4 m |
Dimensions
| Lifting height maximum | 5.79 m |
|---|---|
| Reach at maximum height | 60 cm |
| Height | 2.16 m |
| Height at steering wheel | 1.25 m |
| Width | 1.81 m |
| Cab width | 86 cm |
| Wheelbase | 2.36 m |
| Length at front wheels | 3.35 m |
| Length at fork-holder plate | 3.84 m |
| Ground clearance | 33 cm |
| Overall length | 5.04 m |
Weights & Electrical
| Track | 1.5 m |
|---|
Powertrain & Systems
| Drive speed max. | 23 km/h |
|---|---|
| Tyres (DIN 70361) | 12-16.5” PR10 8 hole wheel rim |
| Engine Deutz TD 2.9 L4, | 4-cylinder diesel |
Hydraulics & Capacities
| Fuel tank capacity | 60 L |
|---|---|
| Engine oil capacity | 10 L |
| Hydraulic oil tank capacity | 65 L |
