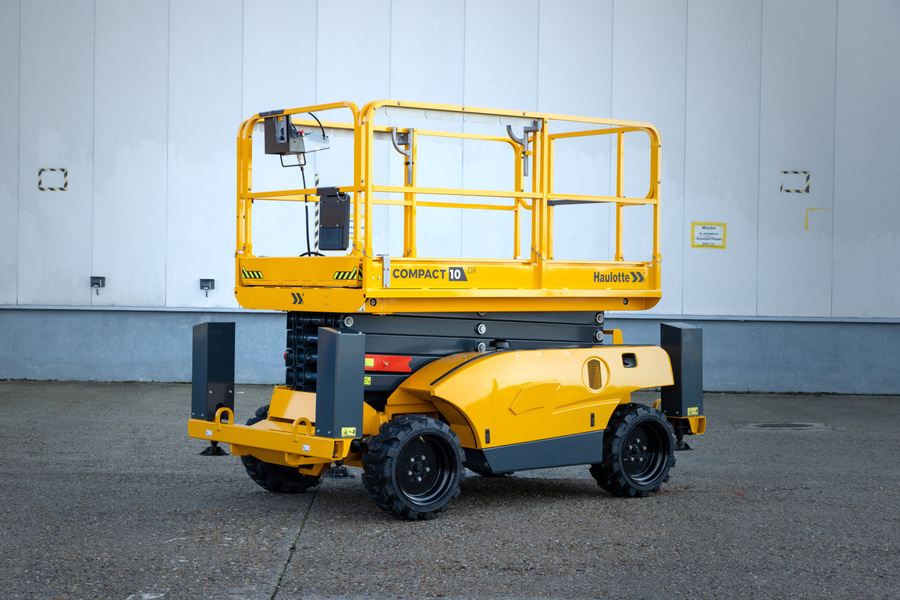

Haulotte Compact 10 RTE Spec Sheet
Quick-reference specifications for the Haulotte Compact 10 RTE. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Working height: 10.28 m
Platform height: 8.28 m
Overall width: 1.78 m
and outside Load capacity up to: 565 kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| and outside Load capacity up to | 565 kg |
|---|---|
| Working height | 10.28 m |
| Platform height | 8.28 m |
| Lift capacity | 565 kg |
| Turning radius – outside | 3.73 m |
Dimensions
| Length – extension | 1.2 m |
|---|---|
| Storage height | 1.59 m |
| Overall width | 1.78 m |
| Platform width – outside | 2.44 m |
| Length | 2.64 m |
| Wheelbase | 1.84 m |
| Platform length – outside | 2.45 m |
Weights & Electrical
| ELECTRIC SCISSOR LIFTS COMPACT | 10 RTE |
|---|---|
| COMPACT | 12 RTE |
| E COMPACT | 10/12 RTE |
| TECHNICAL DATA Compact | 12 RTE |
| Haulotte Group – Compact | 10 RTE |
| Batteries 48 V – | 25.5 Amph (C5) |
| Weight 3 | 305 kg |
Powertrain & Systems
| Drive speed 0,8 – | 5,8 km/h |
|---|
