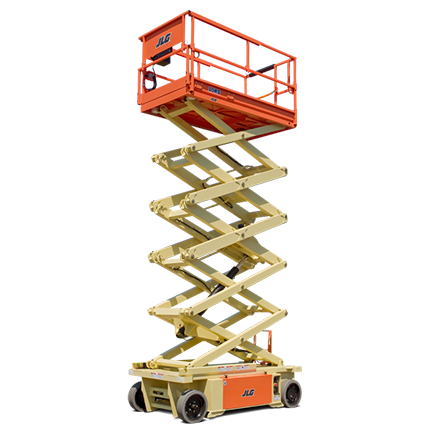

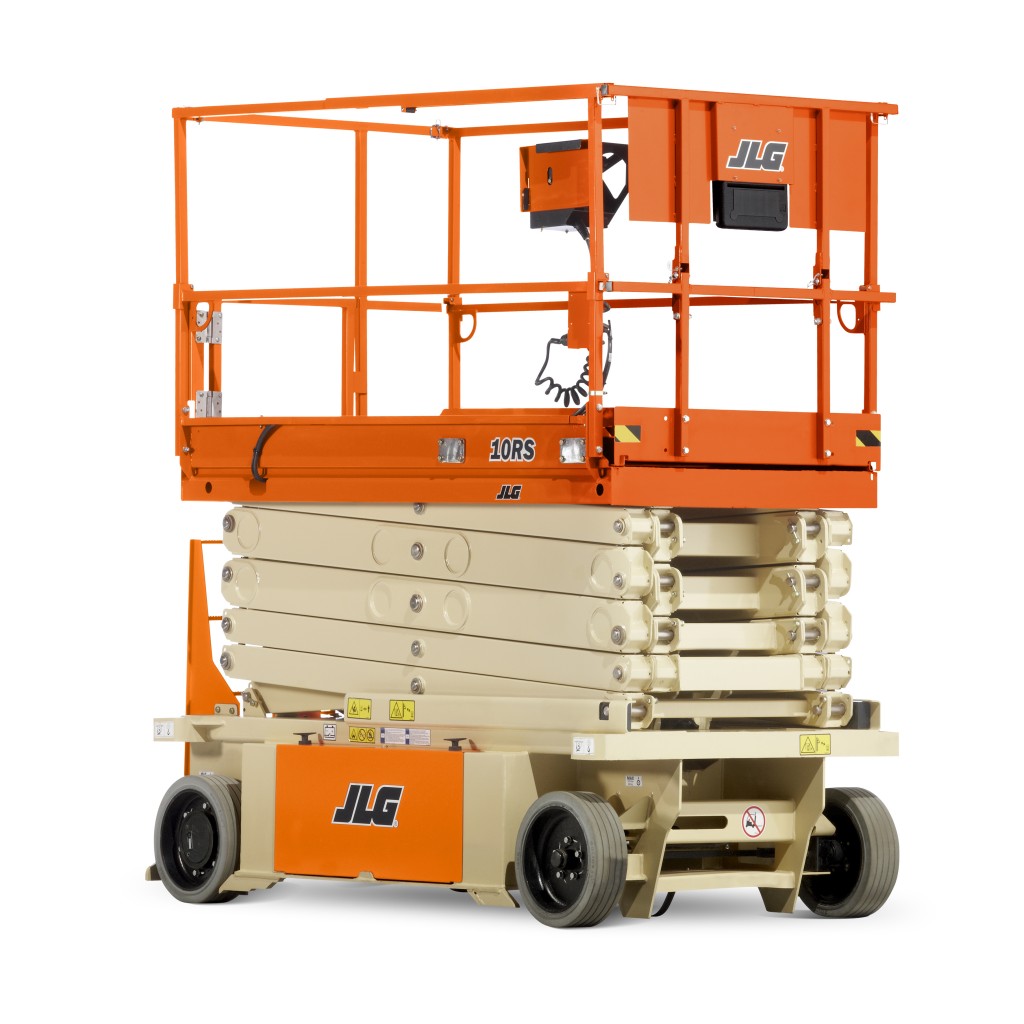

JLG 10RS Specs
Quick-reference specifications for the JLG 10RS scissor lift, from the manufacturer’s spec sheet and published specifications.
- Platform Height (Maximum)
- 32 ft9.75 m
- Working Height
- 38 ft 6 in11.75 m
- Operating Weight
- 6,050 lb2,750 kg
- Gradeability
- 25%
Performance 13 specs
| Working Height | 38 ft 6 in (11.75 m) |
|---|---|
| Platform Height (Maximum) | 32 ft (9.75 m) |
| Platform Height (Lowered) | 1.00 m |
| Safe Working Load (Unrestricted) | 705 lb (320 kg) |
| Safe Working Load (Extension Deck) | 265 lb (120 kg) |
| Maximum Deck Extension | 0.88 m |
| Persons Capacity | 3 |
| Travel Speed (Lowered) | 2.5 mph (4.0 km/h) |
| Travel Speed (Elevated) | 0.3 mph (0.5 km/h) |
| Lift/Lower Time | 60 sec / 60 sec |
| Gradeability | 25% |
| Maximum Ground Bearing Pressure | 7.60 kg/cm² |
| Break Over Angle | 18.2% |
Dimensions 12 specs
| Dimensions plate-forme interne (L x l) | 1,07 x 2,16 m |
|---|---|
| Transport Length | 7 ft 11 in (2.41 m) |
| Transport Width | 4 ft / 48 in (1.22 m) |
| Transport Height (Rails Up) | 1.38 m |
| Transport Height (Rails Lowered) | 6 ft 6 in (1.97 m) |
| Platform Length | 3.51 ft (1.07 m) |
| Platform Width | 7.09 ft (2.16 m) |
| Wheelbase | 6.07 ft (1.85 m) |
| Ground Clearance | 4 in (0.10 m) |
| Inside Turn Radius | 1.22 m |
| Outside Turn Radius | 3.18 m |
| Platform Railing Height | 1.10 m |
Weight 2 specs
| Operating Weight | 6,050 lb (2,750 kg) |
|---|---|
| Gross Vehicle Weight | 6,049 lb (2,744 kg) |
Power / Engine 3 specs
| Voltage | 24 V |
|---|---|
| Power | 2.5 kW |
| Battery Configuration | 4 x 6 V 220 A/hr |
Hydraulics / Fluids 1 spec
| Hydraulic System Capacity | 15 L |
|---|
