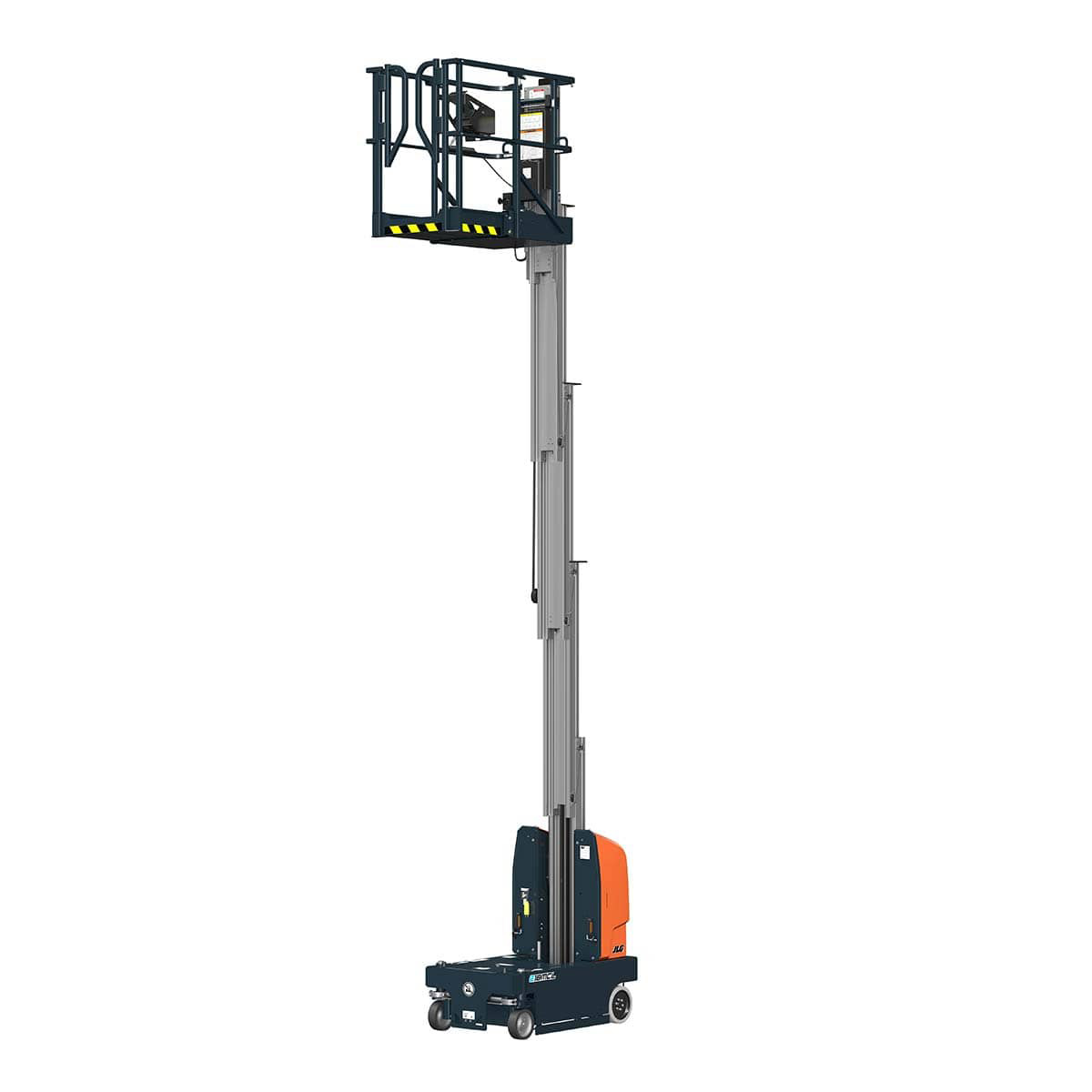

JLG 18MLC Spec Sheet
Quick-reference specifications for the JLG 18MLC. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity 400-lb /: 181-kg
Working Height 24-ft /: 7.5-m
Platform Height 18-ft /: 5.5-m
Extension Deck Capacity 250-lb /: 113-kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height 18-ft / | 5.5-m |
|---|---|
| Platform Height (Elevated) 18-ft / | 5.5-m |
| Working Height 24-ft / | 7.5-m |
| Platform Capacity 400-lb / | 181-kg |
| Extension Deck Capacity 250-lb / | 113-kg |
| Gradeability | 30% |
| Turning Radius (Outside) 55-in / | 1.4-m |
Dimensions
| A. Platform Entry Height 18.5-in / | 47-cm |
|---|---|
| B. Platform Rail Height 43.8-in / | 1.11-m |
| C. Machine Height 78-in / | 1.98-m |
| D. Platform Width 29.5-in / | 75-cm |
| E. Platform Length 32-in / | 81-cm |
| G. Machine Width 30-in / | 76-cm |
| H. Machine Length – Retracted Extension 57.6-in / | 1.46-m |
| I. Machine Length – Extended Extension 76.5-in / | 1.94-m |
| J. Wheelbase 41.4-in / | 1.05-m |
| K. Ground Clearance 2.5-in / | 6.35-cm |
Weights & Electrical
| Battery Four 6V – | 220 AH (2X More Duty Cycles Over Competition) |
|---|---|
| Charger | 27 amp |
| amber beacons and floor mat. | 3. If choosing a platform option, the machine will ship with the selected platform. If choosing the spare platform, |
Powertrain & Systems
| Stowed Drive Speed 2.5 mph / | 4 km/h |
|---|---|
| Drive Speed (Elevated) | 0.5 mph / .8 km/h |
| Drive Speed (Lowered) 2.5 mph / | 4 km/h |
| Drive | 4 Brush Direct Electric Drive (Planetary Gear) |
Hydraulics & Capacities
| Ground Bearing Pressure 123.3 psi / | 8.67-kg/cm2 |
|---|
