JLG 266 266 LoPro 307 And Fluids Spec Sheet
Quick-reference specifications for the JLG 266 266 LoPro 307 And Fluids. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Maximum Lift Height: 266 & 266 LoPro…………………………………………………………………….5,79 m (19 ft)Maximum Forward Reach: 266 & 266 LoPro………………………………………………………………..3,16 m (10.37 ft)Overall Width: 266 & 266 LoPro …………………………………………………………….2.050 mm (80.7 in)Maximum Lift Capacity: 266 & 266 LoPro…………………………………………………………….2.600 kg (5,732 lb)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
Maximum Lift Capacity 266 & 266 LoPro…………………………………………………………….2.600 kg (5,732 lb) Maximum Lift Height 266 & 266 LoPro…………………………………………………………………….5,79 m (19 ft) Capacity at Maximum Height 266 & 266 LoPro Maximum Forward Reach 266 & 266 LoPro………………………………………………………………..3,16 m (10.37 ft) Capacity at Maximum Forward Reach 266 & 266 LoPro Towing Capacity 266 & 266 LoPro…………………………………………………………….2.000 kg (4,40.9 lb) Turning Radius Over Tires 266 & 266 LoPro …………………………………………………………..3.900 mm (153.8 in) Turning Radius at Forks 266 & 266 LoPro ……………………………………………………………..5.100 mm (200 in)
Dimensions
Reach at Maximum Height 266 & 266 LoPro……………………………………………………………………..0,8 m (2.6 ft) Overall Height 266 ……………………………………………………………………………….2.180 mm (85.8 in) Overall Width 266 & 266 LoPro …………………………………………………………….2.050 mm (80.7 in) Cab Width 266 & 266 LoPro ………………………………………………………………….890 mm (35 in) Track Width 266 & 266 LoPro …………………………………………………………….1.633 mm (64.3 in) Wheelbase 266 & 266 LoPro …………………………………………………………..2.690 mm (105.9 in) Length at Front Wheels 266 & 266 LoPro …………………………………………………………..3.854 mm (151.7 in) Length at Fork-Holder Plate 266 & 266 LoPro …………………………………………………………..4.364 mm (171.8 in) Ground Clearance 266 ………………………………………………………………………………….496 mm (19.5 in)
Weights & Electrical
Gross Vehicle Weight with Forks 266 & 266 LoPro …………………………………………………………..6.060 kg (13,360 lb) Front Axle Weight 266 & 266 LoPro …………………………………………………………….3.270 kg (7,209 lb) Rear Axle Weight 266 & 266 LoPro…………………………………………………………….2.790 kg (6,151 lb) the corresponding class of machinery per ISO 7096. The “azw” vibration acceleration values measured according to prEN 13059, therefore meet the
Powertrain & Systems
Type of Fuel……………………………………………………………… Diesel (U.S.A. #2 Diesel) Tires 405/70-20 ………………………………………………………………………………..3,5 bar (51 psi)
Hydraulics & Capacities
Capacity 266 & 266 LoPro…………………………………………………………..95 liters (25 gallons) System Capacity 266 & 266 LoPro…………………………………………………………106 liters (28 gallons) Reservoir Capacity to Full Mark 266 & 266 LoPro…………………………………………………………..64 liters (17 gallons) Differential Housing Capacity (Front Axle) 266 & 266 LoPro ……………………………………………………………7,9 liters (8.4 quarts) Differential Housing Capacity (Rear Axle) 266 & 266 LoPro …………………………………………………………….5 liters (5.3 quarts) Wheel End Capacity 266 & 266 LoPro ………………………………………………………….0,8 liters (.84 quarts)
Lubricants & Fluids
Type of Fluid………………………………………………………………. Mobilube HDLS 80W-90 Shell Spirax LS Esso Torque Fluid 62

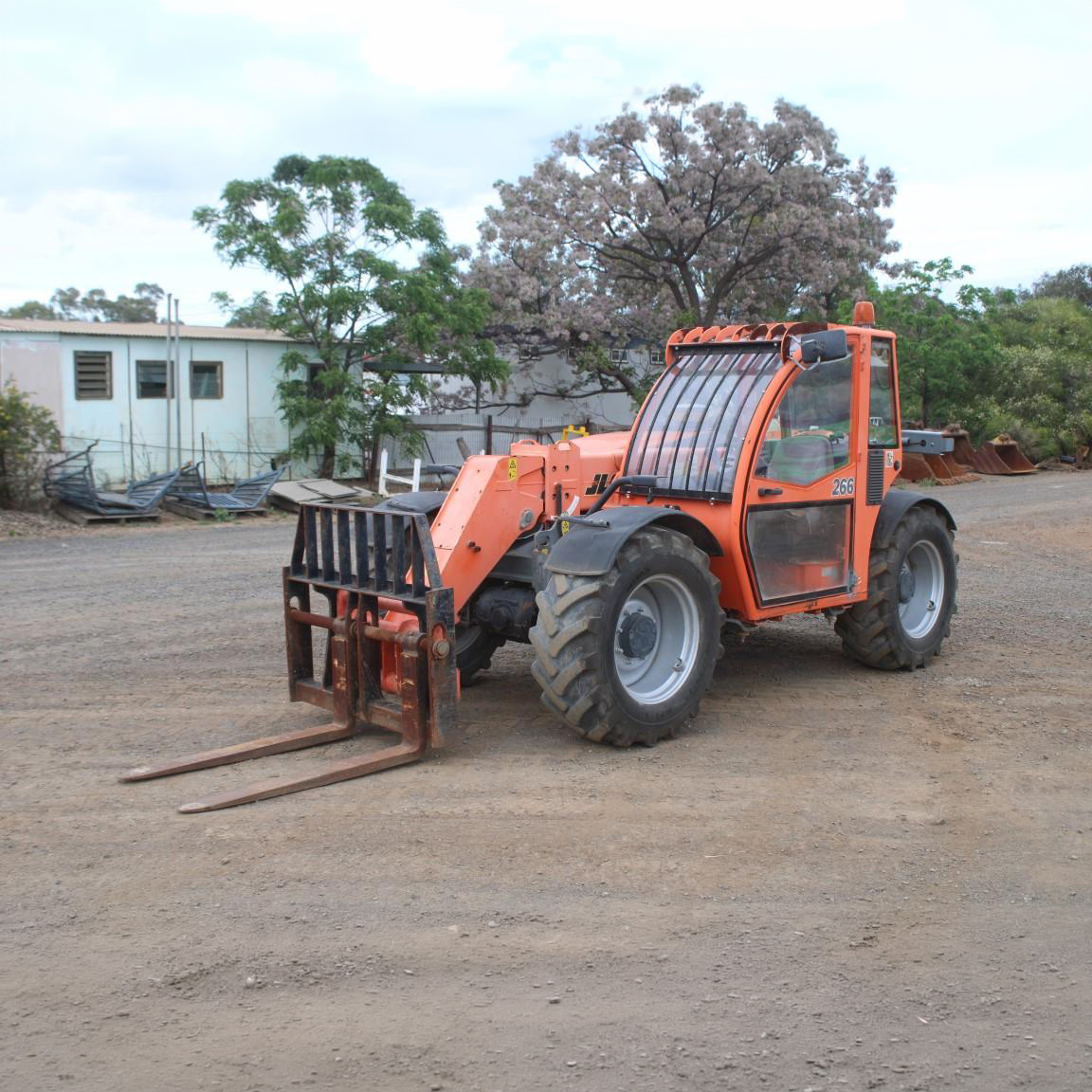

Model Image
