Equipment Spec Sheet

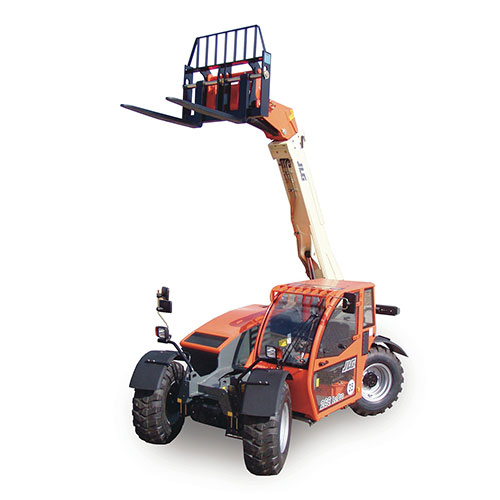

JLG 266 LO PRO Spec Sheet
Quick-reference specifications for the JLG 266 LO PRO. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Maximum Forward Reach: 3.16 m
Maximum Lift Capacity: 2,600 kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Maximum Lift Capacity | 2,600 kg |
|---|---|
| Capacity at full height | 2,200kg |
| Maximum Forward Reach | 3.16 m |
| Capacity at Maximum Forward Reach | 1,000 kg |
| Drawbar Pull (loaded) | 5,000 kg |
Dimensions
| Lifting Height | 5.80 m |
|---|---|
| Reach at Maximum Height | 0.80 m |
Powertrain & Systems
| Engine Deutz 2012, | 74.9kw @ 2200 rpm. |
|---|---|
| Drive | 4 x 4 |
| Steering | 4 WS/Front Steer/Crab Steer |
| Tyres | 405/70-20 |
Hydraulics & Capacities
| Hydraulic System Gear Pump | 94 l/min |
|---|
