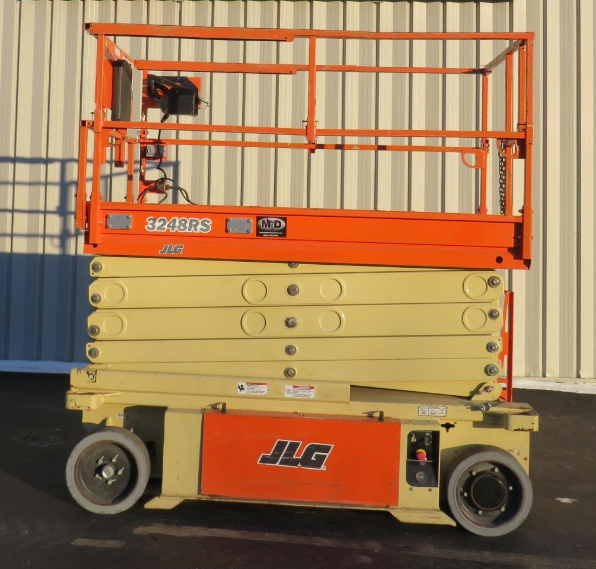

JLG 3248RS Spec Sheet
Quick-reference specifications for the JLG 3248RS (RS Series) electric scissor lift. Includes key performance, dimensions, weights, and hydraulic reservoir capacity from the spec sheet.
Platform Height (Elevated): 32 ft (9.75 m)
Platform Capacity: 705 lb (320 kg)
Overall Width: 48 in (1.22 m)
Weight: 6,050 lb (2,744 kg)
BHESPECS note: Specs can vary by configuration/options. Always confirm against the exact PDF and the machine data plate.
Performance
| Platform Height – Elevated | 32 ft (9.75 m) |
|---|---|
| Platform Height – Lowered | 4 ft 7 in (1.40 m) |
| Platform Capacity | 705 lb (320 kg) |
| Capacity on Deck Extension | 250 lb (113 kg) |
| Lift / Lower Time | 60 / 60 sec |
| Maximum Drive Height | 32 ft (9.75 m) |
Dimensions
| Overall Height | 7 ft 11 in (2.41 m) |
|---|---|
| Height w/ Rails Lowered | 6 ft 6 in (1.98 m) |
| Overall Machine Length | 7 ft 6.6 in (2.30 m) |
| Overall Machine Width | 48 in (1.22 m) |
| Wheelbase | 73 in (1.85 m) |
| Ground Clearance (Midframe) | 4.1 in (10.4 cm) |
| Platform Dimensions | 42.5 × 84.7 in (1.08 × 2.15 m) |
| Platform Extension | 3 ft (0.9 m) |
| Platform Railing Height | 3 ft 4.5 in (1.03 m) |
Chassis
| Drive Speed – Lowered | 2.5 mph (4 km/h) |
|---|---|
| Drive Speed – Elevated | 0.3 mph (0.48 km/h) |
| Gradeability | 25% |
| Turning Radius (Inside) | 4 ft (1.22 m) |
| Turning Radius (Outside) | 10 ft 5 in (3.18 m) |
| Tire Size (Solid, Non-Marking) | 16 × 5 in (41 × 13 cm) |
| Guard Rail Type | Fold-Down |
Power & Hydraulics
| Drive | 24V DC |
|---|---|
| Batteries | 4 × 6V, 220 AH |
| Charger | 25 amp |
| Pump | 3.2 cc/rev @ 2,500 psi |
| Hydraulic Reservoir | 2.38 gal (9 L) |
| Brakes (On Drive Wheels) | Electric, Friction |
Lubricants & Fluids: This spec sheet lists hydraulic reservoir capacity. For approved hydraulic oil type/grade and service intervals, reference the operator/service manual for your exact serial range.
