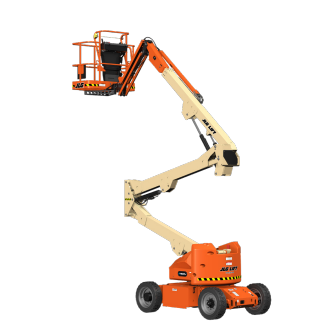

JLG E45AJ Spec Sheet
Quick-reference specifications for the JLG E45AJ. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity 500-lb /: 227-kg
Platform Height 45-ft /: 13.72-m
Horizontal Outreach 23-ft 9-in /: 7.24-m
Capacity 4 gal /: 15.14 L
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height 45-ft / | 13.72-m |
|---|---|
| Horizontal Outreach 23-ft 9-in / | 7.24-m |
| Platform Capacity 500-lb / | 227-kg |
| Swing | 360 Degrees Non-Continuous |
| Jib Range of Articulation (Vertical) | 141 Degrees (+86, -55) |
| Gradeability | 30% |
| Turning Radius Inside (2WS/4WS) | 2-ft / .61-m |
| Turning Radius Outside (2WS/4WS) 10-ft 4-in / | 3.15-m |
| Inward Self-Closing Swing Gate, 30 x | 48-in, |
| D. Tailswing 0-in / | 0-cm |
Dimensions
| A. Platform Width 30-in / | 76-cm |
|---|---|
| B. Platform Length 60-in / | 1.52-m |
| C. Machine Width 5-ft 9-in / | 1.75-m |
| E. Machine Height 6-ft 7-in / | 2.01-m |
| F. Machine Length 21-ft 2-in / | 6.45-m |
| G. Wheelbase 6-ft 7-in / | 2.01-m |
| H. Ground Clearance 8-in / | 20-cm |
Weights & Electrical
| Up and Over Reach 25-ft 3-in / | 7.7-m |
|---|---|
| Electrical System | 48V DC |
| Batteries 8 x 6V, | 375 amp-hr |
| Ambient White Noise Alarm Batteries, | 305 Amp-Hr AGM |
| Platform | 12V DC Auxilliary Power |
| Additional Accessories and Options Available Via JLG Aftermarket. Part No. | 3131132 | R0823_02 |
Powertrain & Systems
| Max Drive Speed 4.5 mph / | 7.2 km/h |
|---|
Hydraulics & Capacities
| Platform Rotator | 180 Degrees Hydraulic |
|---|---|
| Ground Bearing Pressure 110 psi / | 7.6 kg/cm² |
| Capacity 4 gal / | 15.14 L |
