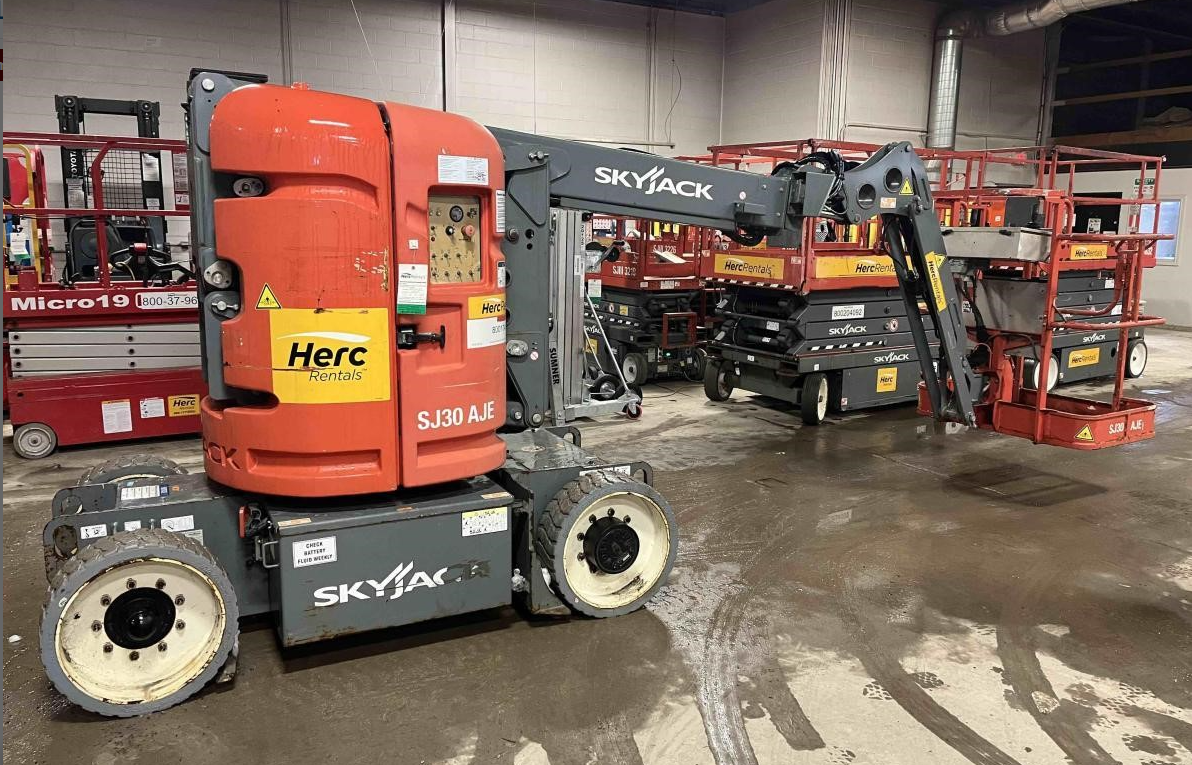

Skyjack SJ30AJE Specs
Quick-reference specifications for the Skyjack SJ30AJE boom lift, taken from the manufacturer’s spec sheet.
- Capacity
- 500 lb227 kg
- Platform Height
- 29 ft 9 in9.07 m
- Work Height
- 35 ft 9 in10.90 m
- Weight
- 12,320 lb5,588 kg
Performance 13 specs
| Work Height | 35 ft 9 in (10.90 m) |
|---|---|
| Horizontal Reach | 20 ft 7 in (6.26 m) |
| Turret Rotation | 355° NC |
| Platform Rotation | 180° |
| Gradeability – Counterweight Facing Down | 25% |
| Turning Radius (Inside) | 60 in (1.52 m) |
| Turning Radius (Outside) | 127 in (3.23 m) |
| Drive Speed (Stowed) | 3.0 mph (4.8 km/h) |
| Drive Speed (Elevated/Extended) | 0.4 mph (0.64 km/h) |
| Capacity | 500 lb (227 kg) |
| Local Floor Load (With Rated Load) | 218 psi (1,505 kPa) |
| Overall Floor Load (With Rated Load) | 464 psf (22 kPa) |
| Wind Rating | 28 mph (12.5 m/s) |
Dimensions 12 specs
| Platform Height | 29 ft 9 in (9.07 m) |
|---|---|
| Up and Over Height | 13 ft 1 in (3.99 m) |
| Platform Size | 30 in x 46 in (0.76 m x 1.17 m) |
| Stowed Width | 47 in (1.19 m) |
| Stowed Height | 6 ft 6 in (1.98 m) |
| Transport Height | 8 ft 3 in (2.51 m) |
| Stowed Length | 18 ft 2 in (5.54 m) |
| Transport Length | 13 ft 1 in (3.99 m) |
| Wheelbase | 65 in (1.65 m) |
| Ground Clearance | 4 in (10.16 cm) |
| Tire Type | Solid, N/M |
| Tire Size | 22 x 7 x 12 |
Weight 1 spec
| Weight | 12,320 lb (5,588 kg) |
|---|
