Boom Lift · Skyjack

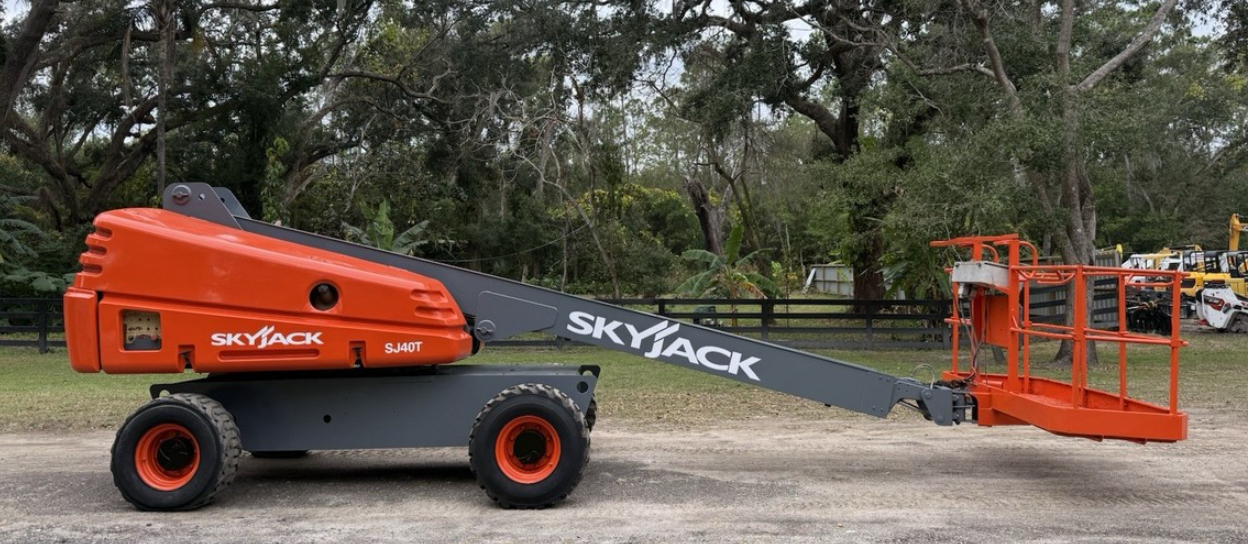

Skyjack SJ40T Specs
Quick-reference specifications for the Skyjack SJ40T boom lift, taken from the manufacturer’s spec sheet.
- Capacity
- 650 lb295 kg
- Platform Height
- 40 ft 7 in12.37 m
- Work Height
- 46 ft 7 in14.20 m
- Weight
- 13,960 lb6,332 kg
Performance 12 specs
| Work Height | 46 ft 7 in (14.20 m) |
|---|---|
| Horizontal Reach | 34 ft (10.36 m) |
| Platform Rotation | 170° |
| Gradeability | 50% |
| Turning Radius (Inside) | 84 in (2.13 m) |
| Turning Radius (Outside) | 198 in (5.03 m) |
| Axle Oscillation | 5 in (12.70 cm) |
| Drive Speed (High speed) | 4.5 mph (7.2 km/h) |
| Capacity | 650 lb (295 kg) |
| Local Floor Load ( With Rated Load) | 130 psi (896 kPa) |
| Overall Floor Load (With Rated Load) | 193 psf (9.24 kPa) |
| Maximum # of Persons | 2 |
Dimensions 9 specs
| Platform Height | 40 ft 7 in (12.37 m) |
|---|---|
| Platform Size | 36 in x 96 in (0.91 x 2.44 m) |
| Stowed Width | 90 in (2.29 m) |
| Tailswing | 37 in (0.94 m) |
| Stowed Height | 94 in (2.39 m) |
| Stowed Length | 25 ft 5 in (7.74 m) |
| Wheelbase | 96 in (2.44 m) |
| Ground Clearance | 11 in (0.28 m) |
| Tire Size | 12 x 16.5 |
Weight 1 spec
| Weight | 13,960 lb (6,332 kg) |
|---|
