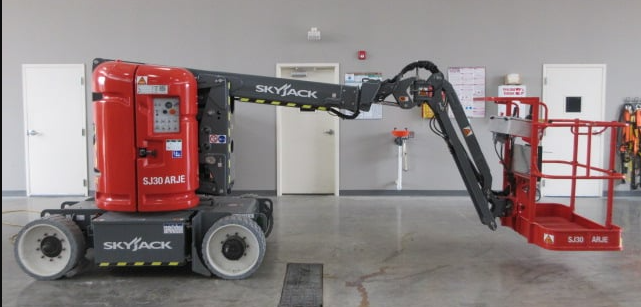

Skyjack SJ30ARJE Spec Sheet
Quick-reference specifications for the Skyjack SJ30ARJE. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Height: 29’ 9” (9.07 m)
D Stowed Height: 6’ 6” (1.98 m)
Capacity: 500 lbs (227 kg)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height | 29’ 9” (9.07 m) |
|---|---|
| Up and Over Height | 13’ 1” (3.99 m) |
| Jib Length | 49” (1.25 m) |
| Jib Range of Motion – Vertical | 142° (+77°/-65°) |
| Turning Radius (Inside) | 60″ (1.52 m) |
| Turning Radius (Outside) | 127″ (3.23 m) |
| Capacity | 500 lbs (227 kg) |
Dimensions
| Work Height | 35’ 9” (10.90 m) |
|---|---|
| A Platform Size | 30” x 46” (0.76 m x 1.17 m) |
| B Stowed Width | 47” (1.19 m) |
| D Stowed Height | 6’ 6” (1.98 m) |
| E Transport Height | 8’ 3″ (2.51 m) |
| F Stowed Length | 18’ 2” (5.54 m) |
| G Transport Length | 13’ 1” (3.99 m) |
| H Wheelbase | 65” (1.65 m) |
| Ground Clearance | 4″ (10.16 cm) |
Weights & Electrical
| Horizontal Reach | 20’ 7” (6.26 m) |
|---|---|
| Weight | 12,320 lbs (5,588 kg) |
| Gradeability – Counterweight Facing Up | 35% |
| Gradeability – Counterweight Facing Down | 25% |
| Skyjack Head Office 55 Campbell Rd. Guelph, ON Canada N1H | 1B9 |
| skyjack@skyjack.com | |
| www.skyjack.com | 0 ft |
Powertrain & Systems
| Drive Speed (Stowed) | 3.0 mph (4.8 km/h) |
|---|---|
| Drive Speed (Elevated/Extended) | 0.4 mph (0.64 km/h) |
| Tire Size 22 x 7 x | 12 |
Hydraulics & Capacities
| Local Floor Load (With Rated Load) | 218 psi (1,505 kPa) |
|---|
